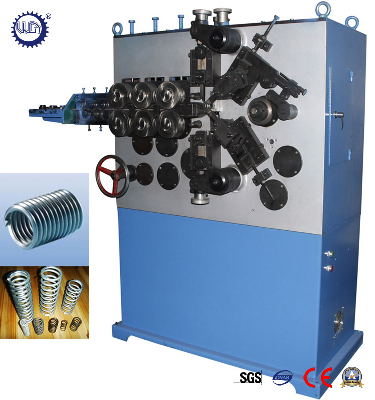

Monthly Deals Customized Automatic Mechanical Wire Spring Coiling Machine (GT-MS-8B)

Automatic Mechanical Wire Spring Coiling MachineMechanical spring coiling machine is to expertly produce kinds of coiling springs fully automatically.It is suitable for wire size from 0.1mm up to 8.0mm. We have different models for options:GT-MS B Series automatic (universal) precision spring coiling machine improves the dimension, shape and precision of the feeding framework, reducer structure and variablePitch framework. This series of products are most suitable for machining springs with high demand of coils number and free height (e. G. The finished spring can grind and cut on the twin surface spring grinding machine directly, which can save the time of check spring by hand). The models, spec and performance of this series are as follows:GT-MS-8BAutomatic (universal) precision spring coiling machineDiameter of steel wire: 3.0-8.0External diameter of spring: 10-200Adjustable and automatically cut length: 0-8000Shape of reelable spring: Various spiral springs (such as compression springs, circlip, cone springs, convex springs, concave springs, equidistant or unequally spaced, left-handed or right handed, and their combination, etc. )Output(per minute): 5-45PCSElectrical machinery(KW): 4.0KWTechnical Data :Spring Coiling Machine Cataloge & Technical ParameterCommodityApplicationModelFeeding wire dia rangeExternal dia rangeFeeding lengthProduction rateMotor powerMachine powerMachine sizeMachine WeightAutomatic Spring Coiling MachineSpring coiling GT-MS-2B0.5-2.0mm3-60mmunlimited8-100pcs/minute1.1 kw380V/3P/50Hz1100*600*1650mm600kgAutomatic Spring Coiling MachineSpring coiling GT-MS-3B0.8-3.0mm4-75mmunlimited8-100pcs/minute1.5 kw380V/3P/50Hz1100*600*1650mm600kgAutomatic Spring Coiling MachineSpring coiling GT-MS-4B1.0-4.0mm6-100 mmunlimited8-50pcs/minute2.2 kw380V/3P/50Hz1100*600*1650mm900kgAutomatic Spring Coiling MachineSpring coiling GT-MS-5B1.5-5.0mm7-125mmunlimited8-50pcs/minute3 kw380V/3P/50Hz1100*600*1650mm900kgAutomatic Spring Coiling MachineSpring coiling GT-MS-6B2.0-6.0mm8-150mmunlimited8-50pcs/minute4 kw380V/3P/50Hz1100*600*1650mm900kgAutomatic Spring Coiling MachineSpring coiling GT-MS-8B3.0-8.0mm10-200mmunlimited8-50pcs/minute5.5 kw380V/3P/50Hz1100*600*1650mm900kg Automatic Mechanical Wire Spring Coiling Machine Display:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
