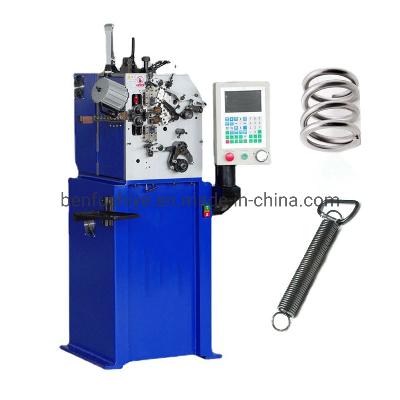

Factory Price High Speed Spring Machine Wire Ring Making Machine

Factory Price High Speed Spring Machine Wire Ring Making MachineThe spring coiling machine is commonly known as the spring machine, which generally refers to the mechanical equipment for producing springs. According to the functional characteristics, it is divided into: compression spring machine, tension spring machine, universal machine, disc machine and special spring machine such as: snake spring machine, torsion spring machine. According to the driving mode, it is divided into: semi-automatic, automatic and numerically controlled.   Product ParametersTechnical parameterWire diameter of coiled matenal2-6mmMax outer diameler of coiled springMax 120mmSpeedMax 150pcs/minWire Feed instruction value0.01-9999.99Cam instruction value0.1°-359.9°Wire feed servo motor2.7KWCam servo motor1.5KWPower supply380V±10%V50HZSize2100X1250X2100mmWeight4100KGDetailed PhotosThe transfer speed is up to 150 revolutions per minute high speed speed / accuracySlide speed is fast 400Cycle / MIN wire speed fast, 54950mm / minWire line accuracy is 0.08mmSlide the non-touch optical sensing memory origin switch is accurate, fast speedThe conversion accuracy is high and the weight is 0.3-0.5 degrees.The core accuracy is up to 0.1 degreesDelivery line breakSafety door protection mechanismProvide all-round protection arms and transfer belt brake motors for operators and machinesGuarantee production safetyArm RGH Heavy Duty GuideLong-term maintenance accuracy, no deformationCalibratic stroke short easy school line 5 minutes to straighten the practical strong tool holder installation and commissioning convenient and flexible14-axis handless wheel programming more convenient wire operation is simpler  Finished product displayOur AdvantagesMechanical characteristics and functions:1. Computer control system and servo motor.Second, the computer is a Chinese interface, easy to operate, accurate positioning, computer controls three to eight servo motors, all motors can be synchronized or operated separately.Third, there is a precision detection tracking device, if any unqualified product is automatically stopped.4. Depending on the work of the fluorescent screen, the product's outer diameter angle can be repaired at any time.5. Mechanical automation automatic lubrication oil supply design to ensure long running of equipment.Sixth, when the wireless, disconnection, the automatic shutdown design and the automatic speed of the wire are automatically effective, making it easier for production.7. Suitable for producing double-toch springs, straight spring, treasury spring, tensile spring, rectangular reed, wire forming, steel scroll, hair strip, and various formulas, hypertrophic rings, etc.Packaging & Shipping /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
