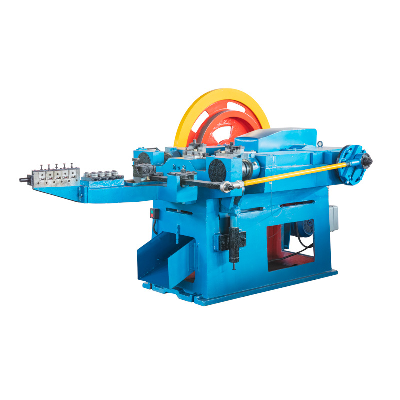

High Efficiency Small Easy Use Simple Operation Nail Making Machine

Product IntroductionOur fully automatic high-speed nail making machine can be used to produce various specifications of ordinary nails, rivets, row nails, cement nails, U-shaped nails, special-shaped nails, etc.It adopts double-die double-punch die structure, and the service life is 2-3 times that of ordinary dies.Reduce nail and roll nail costs.Not only improves product quality, but also reduces production costs.Frequency conversion control, power saving, motor power 7kw, actually only 4kw/h.Our high-speed nail making machine can produce more than three times the output per hour of ordinary machines.At the same time, it saves plant land.Product parameters  ModuleHZD1HZD2 HZD3HZD4HZD4 PlusHZD5UnitMaximum nail length 356080110140180mmMaximum nail outer diameter 1.82.83.54.556mmStroke number 450350320250180150min-1Power of motor 1.52.23445.5kwNoise 506070757580dbDimensions 1350×950×10001650×1150×11001900×1200×12502280×1420×13302280×1420×13302750×1550×1500mmGross weight 55010001200180019002500kg  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
