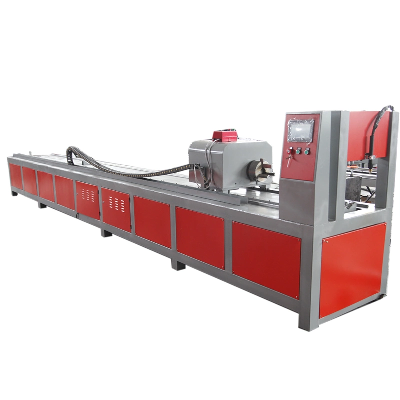

CNC Feeding Automaticly Rotary Round Metal Pipe Plasma Cutting Machine

111 Product Description6 meters round tube plasma cutting machineSuitable pipe to cutTube material: carbon steel/ steeldiameter: round tube ,φ25-φ219 thickness within 10mm(can be customized)Length: 6000mm Cut notching , cut hole ,cut off(30-90degree ),modelSP219(6000)Measure7600*1600*600mm  (Subject to the actual object)   Weight of product1500KG   (Subject to the actual object)Input power supply380V (three-phase, four-wire)Output power supply24VMode of transmissionRack and pinion driveMode of controlPLC controlled touch screenThickness of fuselage coaming plateThe 2.0 mmPlasma power supplyCustomer's ownPipe for fuselage frame100 x100x3. 75 mmProcessing technologyManual feeding - automatic fixing - automatic rotation - automatic cutting - finishingMain component Settings and parametersElectric control unitchintSize of guide railRound guide railOperating systemNumerical control system softwarechuckElectric three-jaw chuck (feeding)Auxiliary support systemAutomatic rise and fall support frameServo servo systemServo station operatorNote:quoation incoude plasma 120A, no incouding the loading frame,if need this too,will update price  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
