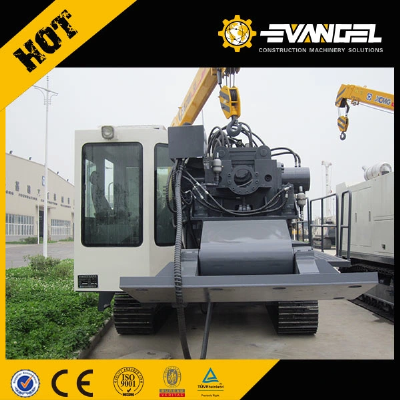

Horizontal Directional Drill (XZ1000) Water Drilling Rig Machine Price

Main Features:Rigid track, truck-carrying type, travel controlled by wire, quick and convenient site transfer. The Cummins turbocharged engine has large power reserve, ensuring the thrusting power and the need in emergent conditions. Advanced load sensing control and electro-hydraulic proportional control technology, imported hydraulic parts, and independent radiating system, ensure energy saving, reliable and efficient work. Driving head slewing and gear rack push-pull system, 2 gear stepless speed adjustment, and high work efficiency. Equipped with 3.2 t auxiliary hoist machine, the installation and removal of drill pipe is easy and efficient. 2 seats, all day cab, color monitoring instrument, comfortable to operate. Interlock when get on or off the machine, automatic protection under high pressure, engine and hydraulic parameter monitoring and alarming, effectively protect the machine. Manual control system is available for special conditions, and this ensures safety during operation.   Model XZ1000Engine CUMMINSRated powerkW392Max.pullback/thrustingkN1000/1000Spindle torque (max)N.m55000Spindle speedr/min0-80Backreaming diametermmØ1200Tubing length(single)m9.6Tubing diametermmØ127Entry angle°10-18Mud flow rate (max)L/min1200Mud pressure (max)bar200Overall weightkg32000Dimension(LxWxH)mm14500×3150×3390*********************************************************************************  Contact way: Name: Yara Yang  Address:Room. 1305, No. 1438, Fortune Times Tower, North Shaanxi Road MP: 0086 18668011946  Tel: +86-21 62770109#666  Fax: +86-21-63168515 Company Website: evangelchina.en.made-in-china.com ********************************************************************************************   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
