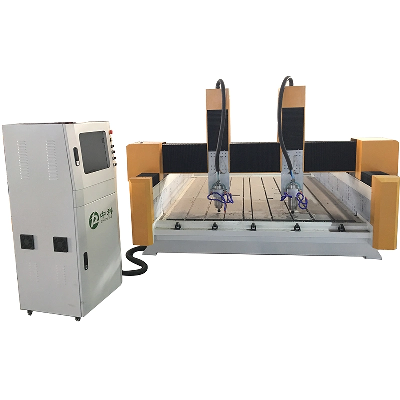

CNC 3D Tombstone Granite Marble Stone Engraving Machine for Sale

Product Description1.With heavy welded thick bed structure, with water tank table, professional heavy structure for stone engraving2.Taiwan HIWIN square guide rails 25MM, helical rack transmission for x and y axis, ball screw for Z axis3.stepper motor and driver,can be optional easy servo motor and driver, also pure servo motor and driver4. 5.5KW water cooling spindle, bigger power, engraving speed faster5.Aluminum T-slot table with PVC, with water tank table6.DSP control system or Ncstudio control system, can be also optional other better control system7.auto oil lubricating system to lubricate the guide rails8.3 collects and 15 pieces cuttersProduct Parameters ModelZK-1325Machine latheWhole thicker welded steel bed structure and thicker gantry barWork dimensions1300*2500*300mmMax. feeding height300mm or biggerWorking tableAluminum T-slot table with stianless steel water tankGuide wayImported HIWIN square orbit from Taiwan 25Driving modeXY-axis rack pinion, Z-axis ball screwMechanical precision0.02mmRepositioning accuracy0.05mmMax. Speed10m/minWorking speed0-6m/minDriving motorstepper motor and driver, can be optional easy servo motor and driver, or pure servo motor and driverSoftwareType 3, Art cut, Art cam and Ucancam softwareVoltageAC 380V 50Hz or 220V 50HzSpindle5.5KW water cooling spindleSpindle speed0 - 24,000rpm/minBlade diameter3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mmControl systemNcstudio control card system or DSP controllerCommandG code, u00, mmg, pltRotary attachmentcan be optional ,20cm diameter to 40 cm diameter optionalCertificationCEDetailed PhotosMain Configuration Thick welded steel bed structure and thicker gantry bar Taiwan HIWIN square guide rails 25 size and Helical rack transmission stepper motor and driver, also can be optional easy servo motor and driver, or pure servo motor and driver water cooling spindle, can be optional 3KW, 5.5KW etc Dust cover for protecting the guide rails and helical rack Richauto DSP control system A11 version, can be optional NK 105 DSP controller BEST brand inverter  Oil lubricating system Optional parts This machine can be optional with double heads, three heads, single head, etc, you can choose according to your requirement Rotary attachment, if you want to engrave 3d cylinder stone, then you can choose to install the rotary, you can tell me what diameter  you need, I can offer you good price Can be optional relief engraving model, with one head but with more spindles, to engrave on stone for relief engraving Packaging & Shipping If you buy only one set machine, can choose by LCL, if you buy more sets to ship by one full container, then can choose by FCL Our AdvantagesWe are a professional manufacture that produce cnc router machines for woodworking, stone, metal, etc, we also have CO2 laser cutting machine, fiber laser cutting machine, laser marking machine, plasma cutting machine, etc, we have our own factory that is built by yourseves, so we can control the material cost to offer you the best price Related products Two heads cnc router machine with two rotaries Single head cnc router machine with single rotary Double independent heads with one rotary, rotary is on the side of machine table Sample photos3d relief stone engraving sample photos                                                          tombestone letters engraving machine sample photos   Stone cutting sample photos                                                                                                                    copper cutting sample photos /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
