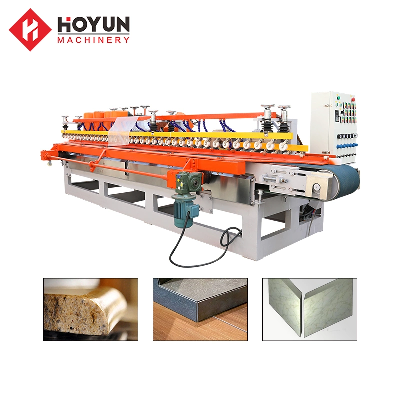

Hoyun Arc Tile Edge Machine Edge Chamfering Polishing & Bullnose Machine

The Customized-arc polishing machine (no swinging structure ) is a special model produced by our factory for processing the round edges of ceramic tiles. The biggest feature of this machine is that it can achieve round edge grinding and polishing by directly installing the shaped diamond wheel without swinging. So there is no need to swing like a traditional arc polishing machine for round edge polishing.A total of 12 motors are composed with functions:straight edges trimming,inner angles chamfering, slotting, 45 degree polishing, and rounding edges. The basic configuration is as follows: one trimming blade, one slotting blade, three inner angle chamfering wheels, one 45-degree chamfering wheel, and four 45-degree polishing wheels, four round edge grinding wheels.Number of round edge grinding head shaping wheel Machinable width range 80-1200mm Machinable thickness 6-30mm Number of inner angle chamfering wheel 3 Motor power 3KW Number of trimming wheel 1 Number of 45°chamfering wheel 1  Number of 45°polishing wheel 4  Processing speed 3-5m/min Weight 3500kg The inner angle chamfering motor is installed underneath, so that the tiles can be processed without turning the tiles upside down.Functions: straight edge trimming, slotting, 45 degree polishing,inner angle chamfering, rounding edgesSwing-free, the maintenance costs are extremely low, and do no need to worry about damage caused by swinging.Foshan Nanhai Hongyun Ceramic Machinery co.,ltd. Was founded in 2008, with the location at the No. 1, Third Industrial Zone, Baishaqiao Village, Shishan Town,Nanhai District, Foshan City, Guangdong Province,China,Covering an area of 3000 square meters. Our company is a professional supplier of sintered stone porcelain&ceramic tile deep processing equipments,manufacturing in ceramic/porcelain tile cutting machine, 45 degree chamfering machine, arc polishing machine, CNC cutting machine, automatic cutting machine, CNC manual cutting machine, and multifunctional cutting machine and so on. Q: What's your quality control system?A: All our CNC machines are with CE certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.   Q: If I don't know how to use the machine, can you teach me?A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.   Q: Does the machine can be customized according to my requirements?A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.   Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service.   Q: Delivery timeA: 1-3 days, if we have the machine in stock. 5-7 days, if change voltage or special made. 7-15 days, Large quanaitybig production line.   Q: Guarantee termsA: MachineQuality guarantee term is for one year. Still Provide technical support forever for free. Also supplier the spare parts./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
