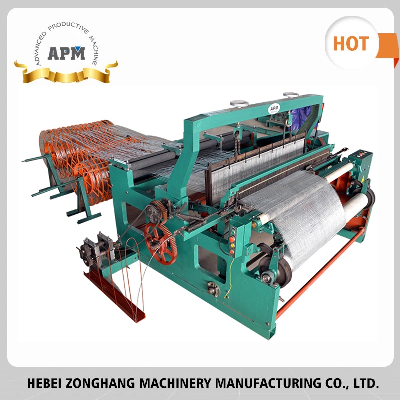

Automatic Productive Metal Fence Security Screen Assembly Crimped Wire Mesh Weaving Machine

Product DescriptionFull Automatic Crimped Wire Mesh Machine for production with wire diameter 0.7-2.0mm. Weft insertion by the steel Rapier. It is usually doing double crimped and inter crimped wire mesh.APM-AM-F101 is a full automatic crimped wire mesh weaving machine.It's auxiliary machine is APM-AM-FC101.AdvantageMore accurateIt can ensures a consistent size of mesh (opening) Its error range is much lower than industry standardMore automationIt can adjust mesh size within range automatically It can weave 24 hours per day without workerMore longer of Roll lengthIts roll length could reach 500meterIt is more better for industry filter meshServo controlledProduct Parameters  Machine typeItemContentMain Weaving Machine APM-AM-F101Normal Weaving Width1300mm & 1600mmWire diameter range0.7-2.0mmAperture range1.5-25mmWeaving Speed50-60times/min,30-50times/minMotor Power380V 50Hz 3Phase 3.0KWBody Weight2500kg/2800kgOutside size:3.1x2.2x1.7mtr / 3.4x2.2x1.7mtrAuxiliary Machine  APM-AM-FC101Wire materialStainless SteelMiddle carbonHigh carbon (Spring wire)Motor Power1.5KWCrimping SpeedAdjustment freelyBody weight450kgsOutside Size1.35mtrx0.7mtrx0.9mtrDetailed PhotosPackaging & ShippingOur AdvantagesAfter Sales ServiceSale service:Maintenance period: one yearWe can send our technicist to the buyers' place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.The debugging fees: freeThe training fees: First 7days is USD100/day for each technical,The numbers of technical persons: one technical person per machines at most.The fees :round-trip tickets, accommodation etc, are all in buyers' account.During the maintenance period:the parts damaged non-artificially will be provided free of charge. If buyers need the technicians, we will assign the technical staff to your company. And the fees ,such as round-trip tickets, accommodation etc, are all in buyers' account.After the maintenance period: If buyers need the machine parts, we will provide it as our cost. If buyers need the technicians, we will assign the technical staff to your company. And the fees ,such as round-trip tickets, accommodation etc, are all in buyers' account.Auxiliary machineAutomatic wire crimping machine.More products  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
