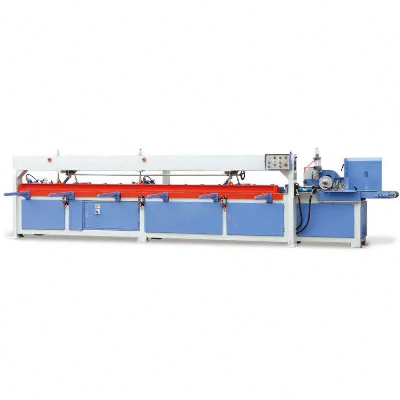

Solid Wood Machine Semi-Automatic Finger Jointer Production Line

Product description  MHZ1560 Automatic Finger Joint LineThis machine with two shaper machines and one pressing machine, connect with different conveyors thus no save labor, this line total power 48.4kw, space 24m, need about 2 operators, can make 6-7 pcs 6m wood per minute.  This machine can make both horizontal and vertical finger joint, just adjust in the machine.  Product FunctionStrap conveyor--Finger joint shaper--Transition strap conveyor--Finger joint shaper(with gluing)--Roller conveyor--Upender--Chain conveyor--Finger joint assembler  Product Specification  ModelMHZ1560Operator2 persons Productivity6-7pc 6m/minWorking thickness20-80mmWorking width30-150mmFeeding length150-850mmFinished assembly length2000-6000mmShaper working table850*600mmShaper spindle diameter70mmShaper cutter outside diameter160mmShaper spindle speed5000rpmMain saw spindle speed2840rpmMax. Hydraulic pressing force7800kgShaper machine power17.87kw*2Conveyor power0.75+2.25+3kw=6kwPressing machine power6.7kwTotal motor power48.4kwMachine voltage380v 50hz 3phaseWorking air pressure8BarPressing methodCutting first then pressFinished wood length tolerance1-2mmMachine space24610*5220*1400mmWeight10000kg  Detail Photos  Factory Details  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
