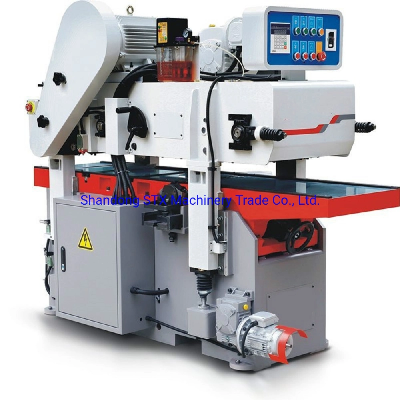

Sold Woodtwo Surface Automatic Double Side Thicknesser Planer Machine

Heavy Duty Woodworking Double Sided Planer Machine with CE certification  Characteristics1.Centralized lubrication system2.Feeding frequency inverter3.Thickness Quick set4.Gate magnetic induction switch5.Rear operation box6.The upper shaft motor power max can be 15kW. (Customized)Technical parametersProcessing capacityModelMB2063DMax. working width635mmMax. working thickness200mmMin. working thickness15mmMin. working length320mmSpiral cutter heads qty90pieces x 2Spiral cutter heads spec30 x 12 x 1.5mmSpindle speed6500r/minFeeding speed5-20Spindle diameter110mmMotor PowerTop spindle power11kWBottom spindle power7.5kWFeeding motor power2.2kWElevating motor power0.37kWTotal power21.07kWOverall diamention2700*1270*1680mmDetailed imagesCentralized lubrication systemThe configuration set to the cent ralized lubrication system, facilitate the lifting system maintenance lubrication.Feeding frequency inverterDigital display, easy operation, energy saving,reduction of mechanical transmission wear.Thickness Quick setSimply preset thickness timber placed at the microswitch, you can do simple thickness settingsGate magnetic induction switchThe thickness of the display gate magnetic sensors,accuracy is much higher than conventional proximity sensor.Rear operation boxMachine emergency stop or abnormal reactions only feed stop and start.Feeding device is with clutch, which can prevent overload and give a safe operation. Auto grease device keeps the machine always lubricated during working.Alarm detector: When overload or stripping occurs with feeding chain, the alarm switch will give out signal alarm.The product is provided with imported digital display device,which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm; besides,upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working.Screw arbor (Heavy Duty) Arbor screw precision machiningProvide fine planing surfacing, and no noiseArbor screw assembly removable tungsten carbide bladeDP-2063: Blade size  (30×12×1.5)×90pcs  Package & Delivery After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.Usually we use iron pallet handling equipment to the container. It can also be packaged in a fumigant-free wooden box according to customer requirements.  Our Service  Pre-sale Service· Tailored configuration solutions according to your needs.· Customized service available.· Free workshop layout design.· Free visit reception service.· Free supply chain support service. After-sales Service· Professional on-site installation, training and maintenance.· Timely and efficient online and video technical support.· Super 18 months warranty since package opened.· Reliable lifetime spare parts support and technician service available.  About UsSince  established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
