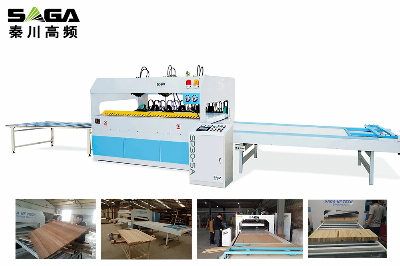

Edge Gluing Board Press Machine with Advanced High Frquency Technology

High frequency edge gluer is also called radio frequency edge gluer, It combines the high frequency heating with 2 direction pressing press, suitable for finger joint or edge glued board jointing or gluing the rim of solid wood door or other wooden block gluing.  Introduction of Use:Place the glued wood slats into the feeding table, starts HF edge gluer, feeding cart will push the slats to the curing table, PLC gives signal to the hydraulic, top press plate presses down to make the wood slat flat and uniform, then back pusher pushes in to make the wood slats well glued, high frequency power starts automatically to heat the glue according to set time, after heating finish, pressure keep and HF stop, system starts the program of cooling, after cooling, back pusher move back, top plate raise, one cycle finish. When the second feeding starts, the finish panel or board is pushed out of curing table and fall to outlet table, then the second gluing cycle starts.  Character of Saga's High Frequency Edge Gluer:PLC automatic control, auto feedingElectro components mostly use European brand like Schneider, Siemens, Omron to enable stable workingStrict quality control and regulation on mechanical spare like hydraulic, other spare parts all use international standardDetailed ImagesModelSP20-SAUpgradeSP30-SAOverall Dimension(mm) High Frequency Generator1000mm *800mm *1800mm1000mm *1000mm *1900mmPress2700mm * 2150mm * 2100mm2700mm * 2150mm * 2100mmIn Feeding cart3500mm * 1600mm * 800mm3500mm * 1600mm * 800mmOut Feeding Cart2000mm * 1330mm * 800mm2000mm * 1330mm * 800mmControl Cabinet640mm * 520mm * 800mm640mm * 520mm * 800mmHorizontal Pressure Diameter of Cylinder  50mm    50mm   Number of Cylinder12 pcs12 pcsTotal pressure36T36TVertical PressureDiameter of Cylinder 50 mm50mmNumber of Cylinder3 pcs3 pcsTotal pressure9T9TMax Gluing length≤2440mm≤2440mmMax Gluing Width≤1220mm≤1220mmContinuous gluing size1250mm*6000mm or moreMax Gluing Thickness8mm-60mm8mm-120mmHF Output Power20Kw30KwGross Weight5.88T 6.5TOscillation6.78MHzMain Spare partSchneider/Siemens/OmronProtectionOverload protection/Wind cooling pressure detection/Filament 2 stage starts/Lose phase protectionTurning ModeVariable vacuum capacitorCooling ModeForce wind coolingThickness of steel20mm thick for main machine, 25mm thick for top plateWood glue handlingRecommend to clean everydayColorBlue and WhiteMaterial stackManualFeeding typeFull-automaticHydraulic SystemTaiwan-KOMPASSData SettingPLC touch screenFAQ1. who are we?We are based in Hebei, China, start from 2010,sell to Eastern Asia,Mid East,Domestic Market,Africa,Southeast Asia,South Asia,Southern Europe,Northern Europe,Oceania,Eastern Europe,South America,North America. There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?high frequency generator,high frequency vacuum wood dryer,high frequency edge gluer,high frequency plywood curved press,high frequency frame assembly machine4. why should you buy from us not from other suppliers?We are first one which can make full-automatic control system for High frequency vacuum wood drying .5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;6. Provide customized machine Yes or NO?     R: Yes. We have professional designers and engineers to supply customized machines. 7.  Q: What is payment terms?     R: 30%T/T in advance, the balance paid before shipment after inspection.8.  Q: What is the warranty time?     R: One year./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
