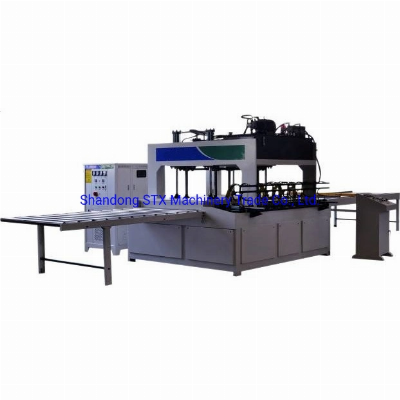

High Efficiency High Frequency Edge Gluing Machine Wooodworking Machinery

High Efficiency High Frequency Edge Gluing Machine Wooodworking Machinery              Characteristics:1.Hydraulic pipe fittings adopt German standard 24 degree cone seal structure; while it overcome the disadvantage of the conventional metric and sealing ring structure which is easy to leak and need to change the sealing ring.2.Safety: the high frequency part installed under the host is easy to get electric shock accidents, especially the equipment maintenance, at the same time, it is extremely not convenient, and my company's high frequency part is equipped with a separate cabinet, safe and convenient to maintenance.3.High frequency generator installs the high sensitive spark protective circuit; it is effective to protect board damaged.4.Bug-killing and sterilizationComponent standards:1. Hydraulic system: adopts Taiwan Hydraulic system, good heat dissipation.2. Hydraulic pipe jointer: adopts inch cone sealing structure, no using sealing ring ,which resolve the oil leaking by using sealing ring .3.Oil pump: adopts Taiwan Hi-Low double pump system, it not only can guarantee oil cylinder to fast move under the low pressure state ,but also can make sure pressure up and down stably, and stable performace. 4. Hydraulic accessories: adopts Taiwan5.Seal: choose Taiwan HANSHENG fluorine aprons, 200 degrees of high temperature resistance, service life is 4-5 times as ordinary cyanide rubber sealing ringTechnical specifications:   Model PB-45PZ PB-45PZ Workbench size(mm) 1300 ×2500 1300 ×2500 Jointing thickness(mm) 8-50 8-50 Feeding mode Auto,push type Auto,push type Up clinder pressure(t) 20 20 Up cylinder size Φ63×400 Φ63×300 Up cylinder quantity(pcs.) 4 4 Side cylinder pressure (t) 25 38 Side cylinder size Φ40×100 Φ50×100 side cylinder quantity(pcs.) 12 12 Hydraulic rated pressure(MPa) 16 16 Outfeeding mode Roller feeding out Hydraulic rated pressure(MPa) Total input power(KVA) 30 30 High Frequency power(KW) 20 20 Machine weight (kg) 6500 7000 Detailed images:The upper pressure adopts vertical lifting mode, and added with rack and pinion guide pillar mechanism.upper worktable with solid core structureRack with heavy structure, bottom, side plug, cylinder mounting surface of three parts with five-sided machine tool from one-time process, ensure working platform flatness and lateral plugging head and a working platform verticality.Wood loosen structureThe machine is equipped with a loosening mechanism to prevent the jointed sheet from being sticked to the upper worktable, which affects the feeding of the back sheet. It also has the function of clearing glue.Oil pressure adjustable independently Hydraulic pressure control equips with the pressure sensor technology. Pressure setting is totally complete on the touch screen.Overcome pressure gauge and control pressure easy to malfunction by the electric contact pressure gauge. Strong worktableWorktable has special reinforced bar ,stable structure, is not easy to deformation after long-term usingThe plate surface can effectively solve the difficult problem of cleaning glue, and can avoid wood fire caused by wood defects (such as boil scars, high water content) and even the problem of plate firing.Oil pump: adopts Taiwan Hi-Low double pump system, it not only can guarantee oil cylinder to fast move under the low pressure state ,but also can make sure pressure up and down stably, and stable performance.ApplicationsOur Service  Pre-sale Service· Tailored configuration solutions according to your needs.· Customized service available.· Free workshop layout design.· Free visit reception service.· Free supply chain support service. After-sales Service· Professional on-site installation, training and maintenance.· Timely and efficient online and video technical support.· Super 18 months warranty since package opened.· Reliable lifetime spare parts support and technician service available.  About UsSince  established in 1990s years, we keep our attention on Four side moulder, Wood sanding machine, Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
