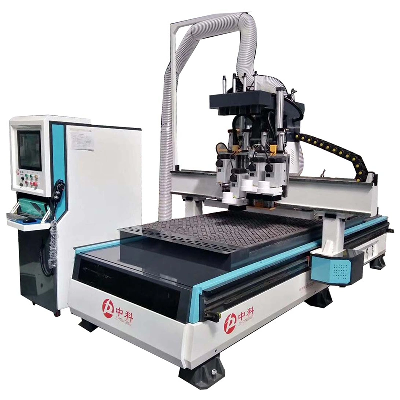

Our machine's photoFeature1. Simple operation and installation, when delivery we will provide the videos for training.2. More steady and strong equipped bed structure with thick steel.3. Equipped with 3.5KW air cooling spindle, can be optional air cooling spindle, more powerful, enough to cut more thickness materials.4.The auto oiling system, just pushing the handle then can realize the whole machine oiling, very convenient. 5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.6. Ncstudio control system, can be optional DSP control system.7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.9.Function of re-carving after break point and power off, reducing the materials wasting.10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.Technical parametersdelZK1325X,Y,Z axis working area1300*2500*200mmWhole structureWelded Steel gantry structureTable surfacevacuum table with 7.5KW vacuum pumpX,Y,Z structureTaiwan HIWIN Square linear guide railX,Y structureRack and pinion transmission, high speed and more stable;Y -double motor driveZ structureImported ball screw, high precisionMax. idling speed50m/minMax. working speed25m/minRepositioning Accuracy±0.05mmX Y Z working Accuracy< 0.02mmSpindle1 piece 6KW, 3 pieces 4.5KW air cooling spindleSpindle rotating speed600-18000rpm/minDiameter of toolsΦ3.175 -Φ20Collect sizeER 25Operation languageG code (plt, mmg, uoo, bmp)Driving systemservo motorsOperating systemTaiwan SYNTEC control systemWorking voltageAC380V, 3ph, 50-60Hz(can be optional 220V)SoftwareUcancamV8 / Type3 / Artcam software (optionApplication1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.3.Instrument industry: 3d curved surface, shape cutting.Sample photos:If you are interested in our products please contact with me /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
