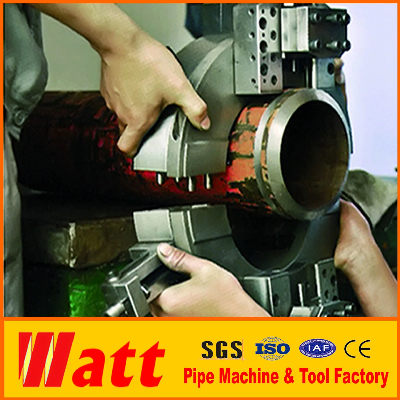

Split Frame Pipe Cutting and Beveling Machine Cold Tube Cutter

Pipe & Flange |Cutting |Beveling |Facing |Drilling |Boring  Product DescriptionW Series Split Frame Pipe Cutting and Beveling MachineBig capacity: 300mmProduct Show         Production DescriptionThe series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe. Features:Cold Cutting and Beveling improves safety      Cutting and Beveling simultaneous                   Split Frame: easy mounted on pipelineTools feed automaticallyFast, Precision, On-site BevelingMinimal Axial and Radial clearanceLight weight and compact designEasy set-up & OperationElectric or Pneumatic or Hydraulic drivenMachining heavy-wall pipe from 3/8" up to 96"Driven motor and model:  Hydraulic/ Numerical control/ Electric/ Pneumatic; Equipment selection:Heavy-duty split frame pipe cutting and beveling machineModelWorking rangeWall thickness(mm)Rotating speed(rpm)OD(mm)OD (inch)Single operationMulti operationW24Ф305~610 12"~24"≤25≤11014W36Ф610~914 24"~36"≤25≤11011W48Ф914~1220 36"~48"≤25≤1109W60Ф1220~1524 48"~60"≤25≤1105W72Ф1524~1829 60"~72"≤25≤1104W84Ф1829~2134 72"~84"≤25≤1104W96Ф2134~243884"~96"≤25≤1103Standard Portable split frame pipe cutting and beveling machineModelWorking rangeWall thickness(mm)Rotating speed(rpm)OD(mm)OD (inch)Single operationMulti operationL3Ф10~903/8"~3"≤25/34L6Ф25~1681"~6"≤25≤5024L8Ф50~2192"~8"≤25≤5023L10Ф114~2734"~10"≤25≤7523L12Ф168~3236"~12"≤25≤7523L14Ф219~3558"~14"≤25≤11023L16Ф254~40610"~16"≤25≤11022L18Ф323~45712"~18"≤25≤11020L20Ф355~50814"~20"≤25≤11020L22Ф406~55916"~22"≤25≤11014L24Ф457~61018"~24"≤25≤11014L30Ф610~76224"~30"≤25≤11013L36Ф762~91430"~36"≤25≤11011L42Ф914~106636"~42"≤25≤11010L44Ф980~116038"~44"≤25≤1109L48Ф1040~124040"~48"≤25≤1109L51Ф1150~130045"~51"≤25≤1108L60Ф1320~154052"~60"≤25≤1105We can design and manufacture according to customer's requirement  Machine body structure and material:1.Standard Model: Alloy steel with ionic nitriding treatment, the weight is a bit heavy but solid and durable;2.Light Model: Aerospace grade aluminum alloy. Light weight and suitable for high-altitude operation.Order GuideBefore you place order to us, please let us know the following information:Choose the right ModelConfirm your electric power supply ( Voltage, frequency and phase)Confirm the beveling angel requiredConfirm the welding joint required (U, V, Double V or Compound preparation)Advise your pipe material ( Carbon steel, stainless steel or others)Other special demands about machineThe spare parts neededAdvise pipe wall thickness (Important)    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
