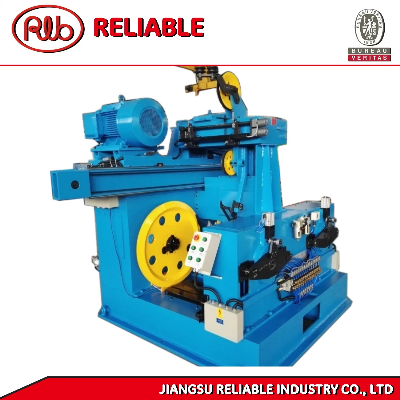

Copper Rod Breakdown with Annealing Production Line

Copper Rod Breakdown with Annealing Production Line.1.Description:Produce copper wires sized φ1.2-4.5mm from aluminum rods of φ8mm , Wire online annealing softening;According to customer needs to provide 9, 11, 13 die wire-drawing machine;It provides two kinds of equipment, namely single-motor drive and sub-motor drive, and single-head and double-head equipment, which are more than two kinds of drives.Optional:Single take-up machine, double automatic take-up machine, vertical pay-off machine or their combination of various take-up forms;Using MMI+PLC control system, production line synchronization control, online monitoring, process parameters can be modified in the touch screen, storage, reading, simple and fast operation;The machine is completed with other items which can be supplied by Reliable upon customer's request, such as heading press machine, heat exchanger, vapor generator, filter unit for drawing solution, etc.2.Equipment Pictures:Rod breakdown technical specifications3.Technical Parameters:Drive ModeModelInlet Dia(mm)WiresOutlet Dia(mm)Max.Speed(M/S)Max Drawing PassCapstan Dia(mm)Installed Capacity(kVA)Take-Up Type(Optional)Shunt DriveLWHD-450/9Φ81Φ2.1-4.2259Φ4504001:630 Single bobbin take-up2:630 Dual bobbin take-up3:800 Single bobbin take-up4:800 Dual bobbin take-up5:820 Vertical pay-off6:Or above combinationLWHD-450/11Φ81Φ1.7-4.22811Φ450450LWHD-450/13Φ81Φ1.2-φ4.23013Φ450500LWHD-450/9(2)2Xφ822Xφ2.05-3.2259Φ450900Linear Single Motor DriveLHD-450/9Φ81Φ2.1-4.2259Φ450400LHD-450/11Φ81Φ1.7-4.22811Φ450450LHD-450/13Φ81Φ1.2-φ4.23013Φ450500LHD-450/9(2)2Xφ822Xφ2.05-3.2259Φ4509004.Layout:5.Application Demonstration:According to the need, it can be configured with a variety of winding forms;Dual bobbin Automatic take-up                                           Basket take-up                         Single bobbin take-up/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
