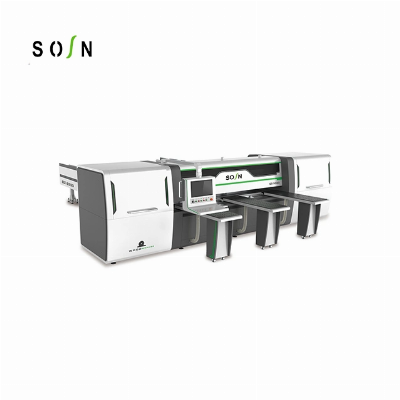

Woodworking Machinery Automatic CNC Beam Saw Computer Cutting Panel Saw

CNC Computer Beam Saw precision machine Woodworking Automatic Computer SawTechnical parameter:Model number DZ2800DZ3300DZ3800Max.cutting length2800mm3300mm3800mmMax.cutting height120mm120mm120mmMin.cutting size50*50mm50*50mm50*50mmMain saw blade motor power15kw15kw15kwMain saw blade diameter450mm450mm450mmMain spindle diameter75mm75mm75mmMain saw blade speed4000r/min4000r/min4000r/minScoring saw motor power2.2kw2.2kw2.2kwScoring saw diameter¢200mm¢200mm¢200mmScoring spindle diameter¢50¢50¢50Scoring saw speed6000r/min6000r/min6000r/minPusher system drive motor2.5kw2.5kw2.5kwHigh pressure blower motor3kw3kw3kwWorking air pressure6-7kg/c m26-7kg/c m26-7kg/c m2Saw carriage drive motor3.8kw3.8kw3.8kwMachine size6200*6300*2000mm6900*4600*2180mm6900*7000*2180mmWeight5500kg6200kg6800kgFeatures:Computer beam saw is suitable for Standardized high-volume processing type of furniture factory,Such as: wood-based panels, aluminum panels, plexiglass, MDF, MDF, ABS, PVC, solid wood and so on.-- Working table base is covered with high pressure compact laminate which is hardly and smoothly surface to avoid panel surface scratch.-- Rack and pinion drive system ensures fast machining for smooth motion.-- Motor separation to ensure machining accuracy.-- Automatically adjust the sawing stroke according to different sawing lengths, reduce the travel time and improve work efficiency.-- The main saw and the slot saw are lifted independent, machine uses liner guides.Main components:Advantage IPC original, Delta PLC LCD system, Safe and reliable operation, editable management of sawing and sawing tasks, compatible with optimized sawing software. -- Two independent motors-- Main motor power 15KW,scoring saw motor power 2.2KW-- Main saw diameter 450mm, scoring saw diameter 75mm-- Saw seat adopts linear guide rail lifting, high precision and smooth operation-- Drive system: Liming reducer and Japan servo motor. Short board robot 2.4KW servo drive saw blade is installed vertically, nut locking device, easy to assemble without adjustment;Saw cutting to ensure accuracy and no chipping. Pusher structure-- 8 Grippers High performance robotic servo feed clamp--Precision servo drive position--Automatic feeding, low labor intensity and high production efficiency. Working table base is covered with high pressure compact laminate which is hardly and smoothly surface to avoid panel surface scratch.Three in-feed floating tables are also covered with high pressure compact laminate with Teflon balls.Safety steel cable on the surface of machine front cover when meet emergency situation happened.Number of roller modules collocate in pusher area, panel saw roller sticks to avoid panel surface scratch.The machine roller tracks under pusher position in the middle of grippers.Every section probably will cause machine damage parts has connected sensors to avoid damage happen. Delta PLCJapan Servo DriveOMRON switching PVC Organ cover save space, Mainly used to protect the machine guide surface to prevent the erosion of sawdust, metal chips and coolant.The functions are dust proof, anti-dust, anti-cooling liquid, etc., thus prolonging the precision life of the machine. Note:-- We guarantee the machine body for one year, three months for easy-broken parts.-- Package: Standard export wooden cast package.-- Delivery time: 30 working days after getting the deposit.(depends the quantity)-- Payment: 30% the deposit by T/T, the balance 70% before the shipment.If you have any need of this machine, please feel free to contact me :-)/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
