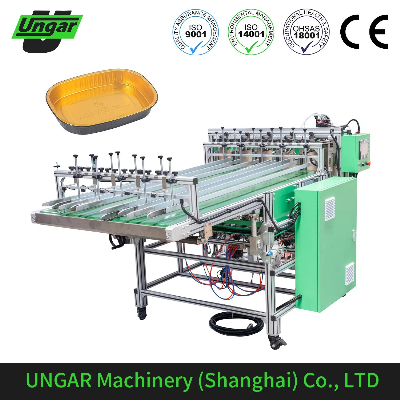

Machine DescriptionsThe stacker is an electro pneumatic machine commanded by a PLC that provides to stack the trays and containers out from the press and to load them stacked in columns.It is controllable according to the demands of the cycle of production through an operative panel. Machine Parameters Model No.UNST-063UNST-080UNST-110Collector belt width850mm1080mm1340mmCollector belt height1100(±100)mm(The height is adjustable)Max container dimensions350/220/140x350mm(2/3/4 Channels)490/290/200/140x350mm(2/3/4/5 Channels)620/380/260/190/140x350mm(2/3/4/5/6 Channels)Min container dimensions80x120mm(Smaller also available)Max height of container stack300mmLifting systemBy step motor and linear guidePhotocell electronic counting deviceContainer counter automatically stops press at top of stroke in emergency situations.Control panelTouch screen panelStacking systemPhoto electric sensor controls the height of the stack with electric brake system.Air consumption0.05m3/Min/ChannelInstalled Power1.5kW1.5kW1.5kWNet Weight400kg500kg600kgStacker Dimension(L x W x H)3200x1300x1400(±100)mm3200x1530x1400(±100)mm3200x1790x1400(±100)mmNotice: The Stackers specifications depend on container size and shape and the mould cavities.UNGAR MACHINERY(SHANGHAI) CO., LTD is an Austrian enterprise established in 2009 supplying high productive multi-cavity mould and machinery which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap aspirator and additional equipments. UNGAR complete integrated production line has been specially designed and developed for the production of aluminum food container and trays.UNGAR MACHINERY(SHANGHAI) CO., LTD as a technology leader focusing on researching and developing new products with a professional design team, technical department and sales group. In this way, the design team with its headquarter in Austria, manufacturing factory located in Shanghai, professional engineers service and global sales linking by Europe, America, Middle East Gul-food area and most of Asian countries.UNGAR MACHINERY (SHANGHAI) CO., LTD also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on. UNGAR more than just a manufacturer......Machine Advantages:1. Accurate output of solenoid valve:UNGAR proprietary control algorithm has accurate response and can adjust the control angle at any time. Avoid stop machine and parameter adjustment, which wastes time2. Advanced pneumatic box:Ensure the mould air pressure is stable3.The speed of the decoiler:Self adaptive according to mould and punch speed4.Raw material prediction system:Raw material remaining prompt function5.Internet access:Remote assistance problem solving6.Decoiler:Our decoler is easir to install the jumbo rollAfter Sales serviceUNGAR Machinery can offer you installation and technical support service, we can dispatch our engineers to help you and training your workers.You also can send your workers to our factory to accept training.FAQ1.Q: What about leadtime ?A: Normally the leading time is about 55 days for molds, and 20days for machines after we received the deposit and confirmed drawings. 2.Q:What kinds of mould you can make? and what is your strong point for the moulds?A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 portion conatiner moulds as long as you offer us sample or specifications. Our strong points are all our moulds are WEDM-LS cut, which makes the mould more accurate and precise. Important materials likestainless steel parts we make in Austria. We also recut after heat treatment, which most of makers do not take this process.3. Q:Does the aluminium foil material need to be lubricated?A:Yes, lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.4. Q:Where can i get the aluminum foil jumbo rolls?A: UNGAR Machinery also see aluminium foils, we can ship the foils with your machines.5. What is the free warranty term?UNGAR Machinery offer 12 months free warranty for all the machines and molds. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
