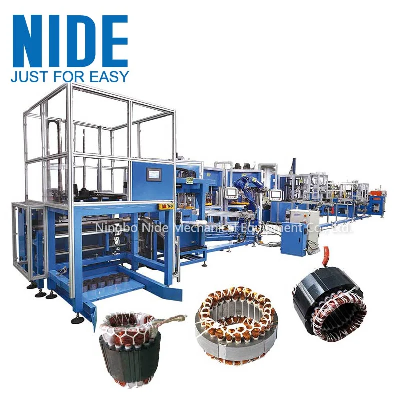

Automatic Electric Induction Motor Stator Production Line

Stator line main feature1.This production line is consisted of two parts, conveyor and stand-alone machines respectively. The stator transferring and transforming process is fulfilled by mechanical arm between conveyor and stand-alone machines. While machine action is accomplished by handshaking control between conveyor and stand-alone machines.2.Each working station of this stator line has a self-contained control function, and can work independently.3.The conveyor is equipped with an independent control system. It can lift, position, and stop stators.4.With an automatic positioning function, the paper inserting station can load and unload stators.5.Mechanical robot is used to connect the paper inserting station and auto coil inserting station during production. It is stable during running. Stator position put by the mechanical arm is more accurate.6.Mechanical arm is used to connect the forming station and conveyor during production.7.Mechanical arm is used to connect the lacing station and conveyor during production. Lacing and knotting process can be automatically done.8.This stator line can automatically test the stator, then it will judge the qualified and unqualified stators so as to do next process. This stator production line is consisted of several machines, paper inserting machine, stator coil winding and coil inserting machine, lacing machine, forming machine. Technical data of stator paper inserting machine:Stator stack length:20~90mmStator OD: max 135mmStator ID: 20~90mmFolding height/width: 2~4mm/4~7mmInsulation paper thickness:0.188~0.35mmEfficiency:≈0.5s/sPower: 380V/50/60HZ 0.75KWMachine weight: ≈200kgMachine dimension: (L)1200*(W)650*(H)1100mmMain technical data of stator coil winding and coil inserting machineStator OD:≤φ150mmStator ID:≤φ110mmStack Height:30-120mmHeight of Coil:3Appropriate Wire:φ0.18-φ1.2mmWinding inserting mode:chained   /same corePitch time:≤40s/pcAir Pressure:0.6-0.8MPaPower supply:380V   50/60Hz 15KwWeight: ≈4000KgDimension:(L)2000×(W)1300×(H)2300mmTechnical data of stator lacing machine Stator OD:φ40-φ160mmStator ID:≤100mmStack Height:30-160mmHeight of Coil:≤65mmPitch time:≤14s/pc(24 slots)Air Pressure:0.4-0.6MPaPower supply:380V   50/60Hz 6KwWeight:≈1500KgDimension:(L)2000×(W)1100×(H)1900mmTechnical data of forming machineStator ID:30~110mmStator OD:Max. 160mmStator stack length: 20~200mmWinding overhang: Max 45mmDisplacement of cylinder:20L/minPower: 380V/50/60HZ 3.75KWMachine weight: about 500KgMachine dimension:(L)1300*(W)1000*(H) 2400mmWith good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available3. Engineers available to service overseasEstablished in 2010, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.NIDE has three main business divisions.The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
