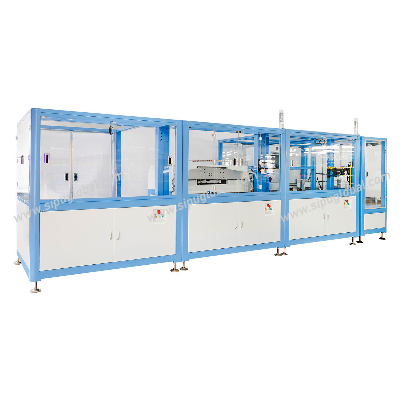

Fully Automatic Customized Stepper Motor Coil Production&Assembly Line Winding Systems

Product DescriptionFully Automatic Customized  Stepper Motor Coil Production&Assembly  Line Winding  Systems   Detailed Photos Finished Products after windingProcessAuto bowl feeder→Pin inserting machine→Winding Machine→Coil taping machine→ Soldering Machine→Testing→terminal cover installation→Conveyor Unload  Product DescriptionFully Automatic Customized  Stepper Motor Coil Production&Assembly  Line Winding  Systems Description :Fully Automatic Customized  Stepper Motor Coil Production&Assembly  Line Winding  Systems , designed for manufacturing synchronous motors used in various products such as automatic mahjong tables, rotating camera motors, and automatic curtain motors.The equipment is specially designed for the high production efficiency required in Solenoid production lines, with the ability to wind up to 16 coils simultaneously. With a maximum speed of 15,000 RPM, our machines can produce up to 1,200 units per hour.Machine  Features:1.Fully automated production: The winding machine is designed with CNC control technology for easy programming and operation. 2.The user-friendly interface ensures even novice operators can easily use the machine.3.High-speed bearing installation: The winding shaft is installed with high-speed bearings, which can achieve a maximum speed of 15000RPM. 4.The use of a durable synchronous belt ensures high speed and low noise. The main spindle belt is easy to replace and maintain.5.Automatic soldering function: The machine has an automatic solder paste application function before soldering, which improves soldering quality and stability.6.Automatic resistance testing: The machine can automatically test the coil resistance and screen out defective products.7.Automatic tray loading: The machine has an automatic tray loading function that can stack 12 empty trays and full trays at once.8.Automatic error detection and shutdown for improved safetySpecification of each moedel :ModelSPBZ23-A1B16No. of  Spindle    16 SpindlesSpindle   Pitch(mm)60mmSpindle  Speed(rpm)Max.15000rpm (CW/CCW) Maximum Travel DistanceX-Axis 110mm (Front/Back)Y-Axis 110mm (Left/Right)Z-Axis 80mm (Up/Down)ControllerEtherCAT or RTEX controllerWire Range(mm)0.02-0.4mmPower SourceAC380V 3P 50HZ or AC200V 3P 50/60HZPower Consumption5KWAir Pressure (Mpa)0.4Mpa~0.6MpaMachine Size (mm)6000(W)×2500(D)×1800(H)mmMachine Weight (mm)About 2000KG  Option1.Wire twister2.Cutter3.Automatic loading & unloading4.Peeling device5.Electrical tensioner Production Workshop Certifications Packaging & Shipping  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
