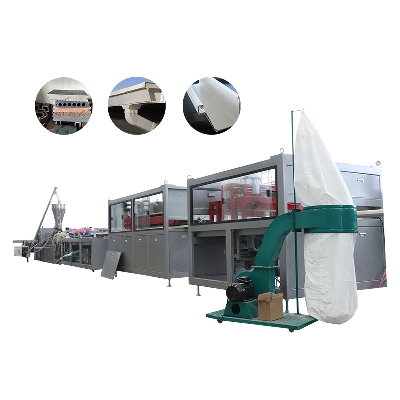

Customized Plastic PVC Profile Extrusion Machine Production Line

YF Series PVC profile production line is mainly used in PVC door& window profile,wide door plate,window plate,extrusion of multi-holes pipe for passing through lines(four holes,six holes,seven holes,nine holes etc.)For different sectional surface and molds,different specifications of twin parallel(conical)screws extruder can be chosen together with corresponding vacuum calibrating table,haul-off unit,cutting unit,tilter,etc. itemsYF180YF240YF400YF600YF800Max.width of board180240400600800Drawing height140140140140140Drawing force1530304050Drawing speed0.5-50.5-50.5-50.5-50.5-5Auxiliary equipment sum power18.731.631.631.631.6Compression air0.60.60.60.60.6Capacity of extruder can be optionally chosen from 60-700kg/h.The haul-off unit has applied unique lift technique of our co.Its work is stable,its reliability is good,its pulling force is large.Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.Movement speed and drawing speed of cutting machine keep synchronous.All movements are controlled by imported PLC,the design is reasonable,the operation is stable,it can conduct automatic cutting with fixed length.Power & dust suction device can be provided.With different molds,the calibration table can choose such specifications as 4-metre,6-metre,7-metre,11-metre,etc.With twin parallel screw extruder,it is particular suitable for high speed extruding of profile.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
