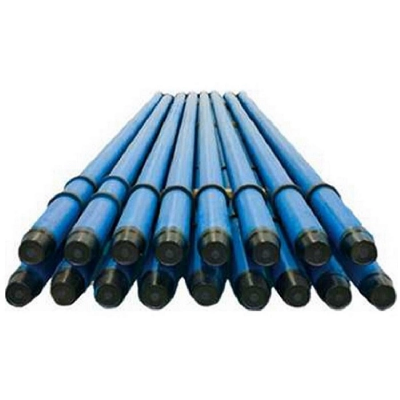

API 88-95mm HDD Downhole Drilling Mud Motor PDM API Downhole Mud Motor For HDDProduct DescriptionAPI 120-127mm HDD Downhole Drilling Mud Motor PDM DOWNHOLE MOTOR/ MUD MOTOR1. About the ManualThe SEACO Drilling MOTOR is a powerful and reliable positive displacement motor. The motor generates an optimum balance of rotational speed and high torque to drive a variety of drill bits at speeds that maximize tool life and performance. SEACO MOTORS offers a choice of flow rates, speeds, and torques to match a wide range of operational parameters. SEACO MOTORS are used in applications such as straight hole drilling, directional (steerable) drilling, horizontal drilling, hole opening, and re-entry(work over). 2. CONSTITUTION Downhole motors differ in size and performance characteristics, but they share the same basic components as follows (Fig.1) : Crossover Sub Safety Catch Sub Power Section Coupling Assembly Bearing Assembly 3. Detail PDM Sizes specificationDownhole drilling motor (hereinafter - PDM).Technical, functional and quality characteristics(consumer properties) of goodsDiameter of motors 88-95 120-127 165-172 210-216 240-2441. Case outer diameter, mm 88-106 120-127 165-172 210-236 240-2442.Engine length no more(without valve), mm 10000 10000 10000 10000 105003.Diameter of used bits, mm 120.6-142.9 139,7- 165.1, 190.5-214.3,250.8-469.9,295.3-444.54.The primitiveness of the working bodies, Z p / Z st 7/8 7/8 7/8 7/8 5/6 or7/85. Consumption of working fluid, l / s 5-10 10-25 17-38 20-60 30-706.Connecting thread:to the bit to the drilling tool Z-76 Z-88 Z-117 Z-152 Z-152 Z-73 Z-102 Z-133 Z-152 Z-171 Analogue Analogue Analogue Analogue Analogue 2 7/83 1/24 1/26 5/8 6 5/8 Reg Reg Reg Reg Reg NC26 NC 38 NC 50 6 5/8 7 5/8 Reg Reg7.The warranty time is notless than an hour. 400 400 400 400 4008. Length of the active part of the stator, mm. 2000-4000 No.Description of GoodsQty (ea)1Downhole drilling motor (hereinafter - PDM).Technical, functional and quality characteristics(consumer properties) of goodsDiameter of motors 88-9552Downhole drilling motor (hereinafter - PDM).Technical, functional and quality characteristics(consumer properties) of goodsDiameter of motors 120-127 93Downhole drilling motor (hereinafter - PDM).Technical, functional and quality characteristics(consumer properties) of goodsDiameter of motors 165-172144Downhole drilling motor (hereinafter - PDM).Technical, functional and quality characteristics(consumer properties) of goodsDiameter of motors 210-216155Downhole drilling motor (hereinafter - PDM).Technical, functional and quality characteristics(consumer properties) of goodsDiameter of motors 240-24412API 120-127mm HDD Downhole Drilling Mud Motor PDM Detailed Photos /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
