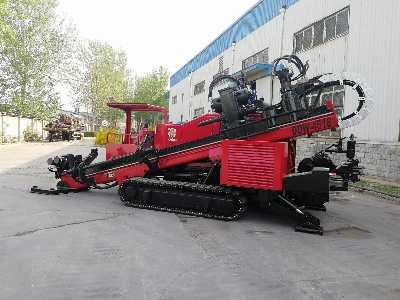

Trenchless Horizontal Directional Drilling Rig Ddw-5527

Horizontal Directional Drilling Rig DDW-5527 Boring machineDDW-5527 drilling rig is the integral steel-tracked chassis model which is featured as easy transportation and flexible movement. The drilling rig is equipped with 2-ton electro-controlled truck-with-crane and gear-rack feeding structure, ensuring theStable movement and high efficiency. Why choose us? L The DW/TXS engineering team and management has more than 10 years in drill designL manufacturing capacity is over 300 units every yearL The DW/TXS team has been producing large rigs since 2004L The original rig is still running with more than 5000 engine hours! L From 2009, we shipped more than 100 rigs 100, 000 lb. Or largerL DW/TXS rigs are the "everyday rig" the one you feel confident taking to the field rain or shine  Technical SpecificationsEngineMakeGross powerRated speedFuel capacityCummins194KW2200r/min 246LHydraulic systemMax pressure (rotary & carriage)Max pressure (control sys.)Hydraulic tank35 Mpa21 Mpa650LDrilling unitTravelSpeedRear stabilizerHydraulic hose carrierLighting systemself-propelled on track crawler with rubber shoe assembly0-2.0 km/h2chain typecabin, rotary headOperator stationCabin Control systemOperation controls Full closed, climate control with A/CPilot controlHydraulic levers Rotary driveMaximum rotary torqueMaximum rotary speedDrive shaft floating27000 Nm136 r/min95mmCarriageCarriage systemMaximum thrust/pullback forceMaximum thrust/pullback speedMax travel distancerack and pinion drive550 kN0-57 m/min4.8 mWrench assembly Wrench designMax breakout torqueMax makeup forceClamp/grip rangeopen-top style71000KN430Nm70-140mmPipe loaderType Semi-automatic pipe loaderAnchoring system Anchor operation Manual CraneLifting capacityboom extention2 tonHydraulicDimensions & weights Length/Width/HeightEntry angleTrack widthMachine weight8500*2380 *2500 mm15-17º400mm16 tonMud pump Onboard mud pumpVolume rateMaximum pressuretriplex piston pump760 L/min9 MpaMud minxing unitTank capacityMud pipe inlet10 m35" * 8 mDrill pipe Length ( each section) Outside tube diameterThread type4500 mm89mm NC31Pilot drill bitBeacon housingsuitable for wireless/wireline transmitterToolsBack reamer Diameter 330, 430, 530, 630, 730, 820, 920, 1050 mm   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
