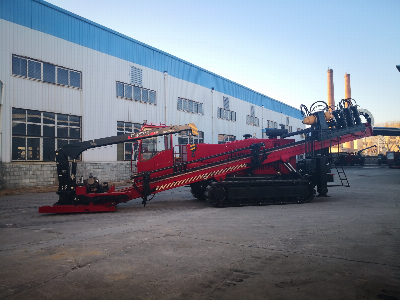

No Dig Horizontal Directional Drilling Rig Ddw-12040 for Pipelaying

Non-Dig/ No Dig Drilling Machine ( Drilling Rig DDW-12040DDW-12040 drilling rig is the integral steel-tracked chassis model with powerful mobile capability; Advanced negative feedback electro-hydraulic proportional control system and double-temperature control room ensure the operation easy and safe.Why choose us  ? l  A Unique partnership between market leader - (Ditch Witch)l  The DW/TXS engineering team and management has more than 10 years in drill designl  manufacturing capacity is over 300 units every yearl  The DW/TXS team has been producing large rigs since 2004l  The original rig is still running with more than 5000 engine hours!l  From 2009, we shipped more than 100 rigs 100,000 lb. or largerl  DW/TXS rigs are the "everyday rig" the one you feel confident taking to the field rain or shinel  Rigs have operated in all types of terrain, including tough rock Specification of DDW-12040DimensionsLength/Width/HeightEntry angle Machine weight Track width11050*2500*3000 mm14-16º22.5 ton450 mmEngineMakeGross power ratingRated speed Fuel tank capacityCummins250 KW2100 rpm540 LDrilling unitTravelSpeedRear stabilizerHydraulic hose carrierLighting systemself-propelled on track crawler with rubber shoe assembly0-5 km/h, forward & reverse2chain typecabin, rotary headHydraulic systemMax pressure (rotary & carriage)Max pressure (control sys.)Hydraulic tank capacity35 Mpa25 Mpa750 LOperator stationCabin RotationControl systemVisualizationOperation controlsFull closed, climate control with A/C0-400Electronic self-diagnostic PLC10" inch touch screen monitorjoystick 2 Rotary drive Maximum rotary torqueMaximum rotary speedDrive shaft floating40000 Nm140 r/min100mmCarriageCarriage systemMaximum thrust/pullback forceMax travel speed Max travel distance rack and pinion drive800KN50 m/min6.4 mWrench assembly Wrench designMax breakout torqueMax makeup force Clamp/grip rangeopen-top style90000 Nm600 KN27 -130 mmPipe loaderTypeSemi-automaticCrane Lifting capacityboom extention2 tonHydraulicMud pumpOnboard mud pumpVolume rateMaximum pressuretriplex piston pump800 L/min9 MpaMud minxing unitTank capacityMud pipe inlet10 m35" * 8 mDrill pipe Length ( each section) Outside tube diameterThread type6000 mm114 mmNC38Pilot drill bitBeacon housingsuitable for wireless/wireline transmitterToolsBack reamer Diameter 330, 430, 530, 630, 730, 820, 920, 1050 mm   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
