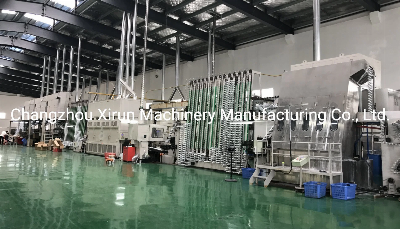

Aluminum Fire Extinguisher Cans Production Line

OverviewQuick DetailsType:Packaging LineCondition:NewApplication:Beverage, Chemical, Commodity, MEDICALPackaging Type:casePackaging Material:WoodAutomatic Grade:AutomaticDriven Type:ElectricVoltage:380V 50HZPlace of Origin:Jiangsu, ChinaBrand Name:XirunDimension(L*W*H):69m*4.5m*6.3mWeight:90000KGCertification:CE CertificationAfter-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseasWarranty:1 YearPackaging Details:Vacuum treatment, wooden-case package  Product DescriptionProduct Application Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.Mono block cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include YR01 Extrusion press, XR02 Trimmer cum brushing, XR03 can washer or degreasing Spray washing machine,XR04 Accumulator, XR05 Internal lacquering machine, XR06 Lacquer curing oven, XR08 Base-coating machine, XR09 6-color or 8-color printing machine, XR12 Drying oven, XR14 and XR14E Necking machine, etc.All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.SPECIFICATIONS FOR AlUMINUM AEROSOL CAN PRODUCTION LINEProduction speed≤110pieces/minDiameterφ22mm- φ35mm,φ35mm-φ53mm or φ45mm- φ66mmMotor power230KWDimensions69000×4500×6300(mm)Intake pressure0.55 MPAGas consumption500M^3/24hMain Configuration List1) PLC: SIEMENS2) Touch screen: Pro-face3) Terminal display:SIEMENS4) Bearing:NSK or NTN5) Approach switch:BANNER6) Photo switch:TURCK7) Divider:TANTZU8) Electrical component:SCHNEIDER or OMRONCertificationsDetailed ImagesMain machineName: XR01 Extrusion press machine Main technical parametersA. Can diameter range: φ35mm-φ53mmB. Can length range: 80-250mmC. Production speed: ≤110cans/minD. Main motor power: 37KW, Total power:37.28KWE. Intake pressure: ≥0.4MpaF. Slide stroke:350mmG. Net weight: 11000 KGH. Dimensions: 3195*1558*1585mm(conveyer belt and vibrationhopper not included)Main machineName: XR09 6-color Printing MachineMain technical parametersA. Can diameter range: φ35mm-φ53mmB. Can length range: ≤230mmC. Production speed: ≤110cans/minD. Motor power: 19.17KWE. Dimensions: 3340×2330×2100mmF. Net weight: 7600KGG. Intake pressure: 0.6MpaMain machineName: XR02 Trimming cum brushing machineMain technical parametersA. Can diameter range: φ35mm-φ53mmB. Can length range: ≤250mmC. Production speed: ≤110cans/minD. Main motor power: 4KW, total power:12.85KWE. Intake pressure: P=0.6MPaF. Dimensions: 2940*2600*1820mmG. Weight: about 2800KGMain FeaturesName: XR08 Base-coaitng machineMain technical parametersA. Tube diameter range: φ35-φ53mmB. Tube length range: ≤250mmC. Production speed: ≤110cans/minD. Motor power: 5.15KWE. Dimensions: 2750*2330*1760mmF. Net weight: 4500KGG. Intake pressure:≥0.5Mpa  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
