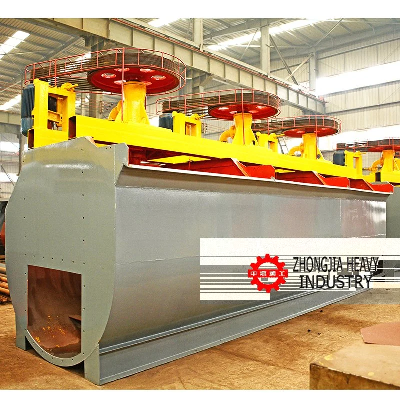

Flotation Mineral Machine Air Floatation Cell Machine

Product DescriptionFlotation Mineral Machine Air Floatation Cell MachineXCF-type and KYF-type flotation machine are inflatable flotation machine, impeller diameter is small, low circumferential speed, can reduce the power of 30-50%; the tank is equipped with an air distributor, so the air dispersion is uniform; the impeller acts as a centrifugal pump, but the solid particles are fully suspended; the use of U-shape tank structure, but the tailing sand sedimentation is the least accumulation; the impeller structure and the blade gap flow down the design is reasonable, the wear of the impeller is more uniform, impeller, stator service life is long.Product advantages:1. Small impeller diameter, low circumferential speed, low power consumption;2. Good air dispersion effect of air distributor;3. The impeller has the role of centrifugal pump, so that solid particles are fully suspended;4. U-shape tank reduces short-circuit circulation;5. Light wear and tear, low consumption of chemicals, low running cost;6. Simple structure and easy maintenance;7. Slurry level control system, convenient operation and management;Flotation machine components    When the impeller rotates, the slurry in the tank is suctioned from the bottom of the tank through the impeller blades. At the same time, the low pressure air pass the through the air duct, air control valve, hollow spindle into the air distributor of impeller chamber. After the air and the pulp are sufficiently mixed between the impeller blades, it discharged from the vicinity of the upper of the impeller. Stabilized and oriented by the stator, the pulp entire to the whole tank. The mineralizations of the bubbles rise up to the surface and form foam. The foam is scraped by the scraper into the foam tank, the pulp and then returns to the impeller zone and recycles.Model Effective volume(m³)Blower Pressure(Kpa)Capacity(m³/min)Impeller Power(kw)Weight (t)Diameter(m)Speed(r.p.m)KYF-22≥160.4-20.422475.51.4XCF-20.473317.51.6KYF-33≥180.6-30.482195.5/7.51.9XCF-30.542667.5/112.3KYF-44≥19.81.2-40.55200112.2XCF-40.62215152.6KYF-88≥21.53-80.63175154.2XCF-80.72185224.4KYF-1616≥25.54-160.7416022/306.0XCF-160.86160376.5KYF-2020≥255-100.78155376.9XCF-200.91155457.6KYF-2424≥30.44-240.801506.847.5XCF-240.911537.959.8KYF-3838≥34.310-380.881386.911.3XCF-381.051488.1512.8Packaging & Shipping Company ProfileOur company is a professional manufacturer of complete sets of mineral processing machinery, cement, chemical, building materials and other equipment, with a production history of more than 40 years. Its main products are: Jaw crusher, Hammer crusher, Roller crusher, Impact Crusher, Ball Mill, Rod Mill, Rotary Kiln, Stone Production Line, Sand Making Machinery, Mobile Crushing Station, Organic Fertilizer production line, magnetic separator, jig machine, slime dryer, sludge dryer, limestone ash machine, dryer, cooler, pelletizing machine, vibrating screen, automatic sand return spiral classification Machines, high-efficiency and energy-saving flotation machines, mining mixing tanks, feeders, thickeners, lifting conveyors, screw conveyors and other mechanical equipment.FAQQ1: Hi, are you mining machinery manufacturer?A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...Q2: which country have your products been exported?A: We have been exported business for 10 years and we have lots of customers and agents in the world, such as Switzerland, Malaysia, South Africa, Canada, America, etc...Q3: What Information should customers give us to provide you suitable quotation and service?A: What minerals are you separating?     What's the maximum size of your raw minerals?     How much capacity do you need per hour for your project? Q4: How long is the warranty of your equipment? Does your company supply the spare parts?A: The warranty period of equipment is one year. And of course, we will supply the spare parts for you at lowest cost.Q5: If I need the complete mineral processing line, can you help us to build it?A: Yes, we can help you combine a complete mineral processing line and give you related professional advice if you need. We had already built many mining projects in China & Overseas.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
