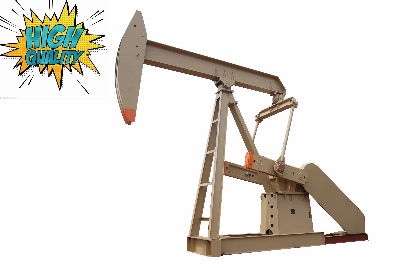

Best Quality! ! API Cyj Series Beam Pumping Units Suction Oil Machine

Product outlineThe CYJ series pumping unit is one kind of convention beam pumping unit, is the most common,an application scope broadest surface power equipment in field production oil.The products conform to API Spec 11E Specification for Pumping Units,SY/T5044 Beam Type Pumping Unit and other related standards,and have obtained the certificate of authority to use the official API monogram.In addition to the production of conventional beam pumping unit, to meet energy-saving requirements of oil company,the company has developed:antiphase beam balanced pumping unit,double horse's head pumping unit, diameter and moment adjusting pumping unit ,wheel type pumping unit and so on many kinds of energy saving pumping unitsTechnical Features.Carry out the design using the modulation and the hypothesized technique of manufacture,optimize the product structure pattern,the spare parts have high level of "the standardization,the universalization,the seriation"..Strength of key parts is calculated with the finite element analysis,the property is stable,the reliability is high.The whole unit operating is simple,the maintenance is convenient,the service life is long.The reducer uses the symmetrical divergence type double circular arc or the involute double helical gear transmission,seal is good ,the noise is low,the revolution is steady,it is reliable and durable..The beam uses box beam or I-beam structure,which has high strength,rigidity,large carrying capacity..The horse head is lateral rotary structure,when carrying out the workover ,the horse head will rotary 90°,so that the wellhead is being open position to facilitate operationsMain Technical ParametersNOModelRated Polished Rod Capacity(KN)Stroke(m)Frequency of Stroke (rpm)Gearbox rated torque(KN.m)1CYJ3-1.5-9HB301.5/1.2/0.96/9/1292CYJ4-1.5-9HB401.5/1.2/0.96/9/1293CYJ5-1.8-13HB501.8/1.5/1.26/9/12134CYJ5-2.5-18HB502.5/2.0/1.56/9/12185CYJ6-2.5-26HB602.5/2.0/1.56/9/12266CYJ8-3-37HB803/2.5/2.06/9/12377CYJY10-3-53HF1003/2.5/2.16/9/12538CYJY10-4.2-53HF1004.2/3.5/2.85/6/8539CYJY12-4.8-73HF1204.8/3.6/2.54/6/87310CYJB12-4.8-53HB1204.8/3.9/3.04/6/85311CYJBG12-4.8-53HB1204.8//4.2/3.6/3.04/6/85312CYJBG14-4.8-53HB1404.8/4.5/4.2/3.9/3.6/3.34/5/65313CYJY14-4.8-73HF/A1404.8/3.9/3.14/6/87314CYJY14-4.8-73HF/B1404.8/3.9/3.14/5/67315CYJY14-4.8-73HF/C1404.8/3.9/3.14/6/87316CYJY16-5.4-89HF1605.4/4.5/3.64/5/68917CYJY16-5.4-89HF/B1605.4/4.5/3.64/5/68918CYJ3-1.5-4.6HY301.5/1.14/5/64.619CYJ4-1.5-4.6HY401.5/1.14/5/64.620CYJ5-2.1-9HY502.1/1.7/1.34/5/6921CYJ6-2.5-26HY602.5/2.0/1.55/6/72622CYJ8-3-37HY803/2.4/1.84/5/63723CYJY10-3-37HY1003/2.4/1.84/5/637/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
