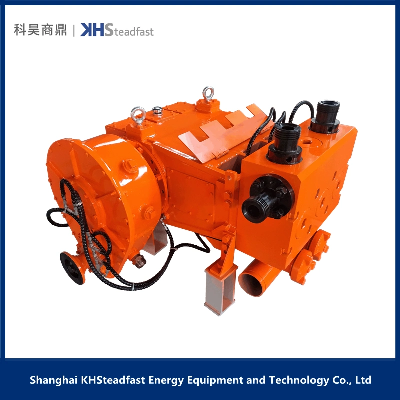

Well Service Plunger Cementing Pump/ Fracturing Pump

Product DescriptionKTZ600S is a reciprocating, Volumetric, single acting and horizontal three-cylinder plunger pump, with maximum input braking power of 600HP. The pump is widely used in in intermittent well operations such as acidification, cementing, fracturing, well killing and etc.Product namePlunger PumpSize4.5 InchModelKTZ600UseOilfield PumpingBrandKHSteadfastColorOrangered Direction for use   * Consisit of a Power end assembly, a fluid end assembly and a reduction gearbox assembly.* The gearbox could be mounted either on right or left side of the pump. ( There are 16 different positions for installation)  * Spare parts interchangeable with spm.   * Different plunger sizes (3'', 3 1/2'', 4'', 4 1/2'') to achieve different flow rate under different pressure. ( Please refer tothe following parameter table)Performance Parameters under Different Operation ConditionsPlunger Sizemm(rpm)50120200300450FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)3"(76.2)28(104)14141(97.5)66(250)14098(97.2)110(417)8456(58.3)165(625)5642(38.9)248(938)3756(25.9)3.5"(88.9)37(142)10399(71.7)90(341)10341(71.3)150(568)6208(42.8)225(851)4148(28.6)337(1277)2756(19)4"(101.6)49(185)7962(54.9)118(445)7919(54.6)196(741)4757(32.8)294(1112)3176(21.9)441(1668)2118(14.6)4.5"(114.3)62(235)6295(43.4)149(563)6266(43.2)248(938)3756(25.9)372(1407)2509(17.3)558(2111)1668(11.5)Input Power188kW447kW447kW447kW447kWQuality ControlCompany Profile  Our Services & Strength Our products are also getting into brine-exploitation field and geothermal- resouces exploitaton field. With 22730 square meter research-development center areas, 9700 square meter administrative center areas, We have over 75 intermediate- highprofessionaltitle employees.CertificationsAbout usPackaging & ShippingPacking:Customized Box, Woolen, Iron Case (For Pumps & Spares and High Pressure Flowline Products)Pick Logistics, shipping agent with great service for ClientsPayment TermsWhy Choose Us   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
