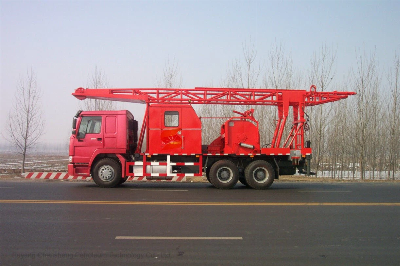

Swabbing unitSwabbing unit is mainly used in the oil recovery operation for remote,abandoned and stripped well, and in the operation of oil well and water well swabbing, drifting and fishing,The drum adopts band brake in both sides.and adopts both manual and pneumatic types, so the brake is stable and reliable.ModelZYT5213TCYZYT5200TCY4ZYT5221TCY ZYT5212TCY ZYT5110TCYZYT5223TCY chassisND1254B44JSX1256UN434ZZ1257M4347CDFL1250A8DFL1120B2SX1250MB4Drive type6×46×46×46×44×26×4Drum capacity2500 m 2500m/2700m/3000m 2500m/2700m/3000m 2500 m 1200m(Ф13mm)900m(Ф16mm)4500m(Ф14mm)Max work depth2350 m 2350m/2550m/2850m2350m/2550m/2850m2350 m 1000(Ф13mm)750m(Ф16mm)4350mMast work height 11 m11m11m11M11m 14mMax mast hoisting capacity120 kN120KN120KN120 kN 30 kN120KNWireline diaФ13mm/16MM16mm16mmФ13mm/16MMФ13mm/16MMФ14mmhydraulic systemThe hydraulic system consists of legging cylinder, raise cylinder, oil tank, gear pump and control valve, etc. it is used to adjust raise for the frame and mastAir systemThe air system consists of air cylinder and pneumatic valves, etc. it is used to finish the pneumatic brake and change gear, at the same time supply air source for drum clutch.Rolling rope deviceThe device is mechanical and manual structure, it can make the wire arrange in the drum orderly and prevent the wire from damage because of wrong arrangement.Brake systemIt is equipped with manual, mechanical ,double sides brake, also has a pneumatic, emergency brake to meet the requirement of work.Operating cabThe operating cab have measuring display device, it is used to measuring the wire to well depth and drum pull during operation.The operating cab is equipped with the chair, the transmission box gear,the control of the engine,the control of the main truck clutch,the control of the drum clutch and the brake of the drum is in the operating cab.Window on the right side of cab is push-pull type. Cab interior Installing a tail gas heating system in the operation cab and side nearly to chassis cab (U-shaped layout of the pipeline, and install control exhaust emission gate)./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
