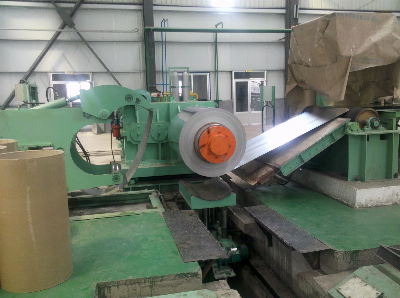

Payoff Reel/Recoiler/Tension Reel/Uncoiler/Payoff Reel Machine

pay-off reelFeatures: with a cantilever steel coil reel expanding function, positive function, frequency control function, parking brake function.The pay-off reel receives the steel coil on the steel coil car, and sends its head into the production line.  It is expanded and shrunk by the core shaft, reducer, motor, mandrel, etc.. Drum is controlled by the hydraulic cylinder expansion, drive shaft by the motor to complete.The structure is composed of welding rack, cantilever drum, variable speed drive, hydraulic drive system, motor reducer.technical parameters:Type: fixed open coilMaximum diameter: φ1200mmMaximum carrying capacity 5tThreading speed: 15m/minMaximum speed: 80m/minNormal diameter: φ508mm/φ610mmMotor: variable frequency speed regulating motorRecoilerRecoiler for the cantilever structure, in some tension with the EPC device with the completion of coiling coiling.Structure: coiler consists of cantilever drum, transmission system, traverse cylinder, sliding base and other partsDrum:drum in the expansion and contraction of the hydraulic cylinder under the action of expansion and contraction, in the reel, the drum bulge, in the unwinding of the drum shrinkage.Transmission system: the transmission device consists of an AC variable frequency speed regulating motor, coupling, brake and gear box. The gear box is a totally enclosed welded steel structure.Horizontal cylinders: controlled by servo valve EPC device, realize edge coilingSlide base: support the Recoiler, slide on the slide rail.Technical parameter:Coiling type cantilever drumCoiling way: take upMaximum weight of steel coil: 5tDiameter of steel coil: Φ1200mmDrum diameter: 508mmDiameter of steel coil: Φ1200mmDrum diameter: 508mmTraverse stroke: ±100mmuncoilerFunction: The tension reel is overhang type. It works together with the EPC device at the specified tension to coil the steel strip. Structure: It is composed of overhang drum, driving system, traversing oil cylinders and sliding base, etc.Drum: It is 4-pyramid expanding type and composed of 4 alloy forged steel arc segments and wedge shafts. The drum is expanded and shrunk by the expanding cylinder. The drum shrinks when loading coils and the drum expands when normal pay-off and running.Transmission system: the transmission is composed of an AC speed regulating motor, a coupling, a brake and a gear box. The gear box is a fully enclosed welded steel structure.Transverse oil cylinder: It is controlled by the servo valves of the EPC device to realize the side-orderly coiling. Sliding base: It if for supporting the completed tension reel which can slide on the sliding rails. Tension reel type           overhang drum type   Coiling type                up coiling   Steel strip thickness        0.3~2.0mm   Max. width of the coil       1250mm Max. coil weight             16t Outer diameter of coil      ¢800~1700mm Drum diameter               ¢508mm Drum width: about           1500mm Traversing stroke           ±100 mm /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
