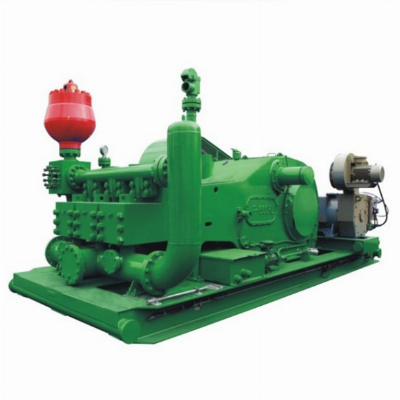

Triplex Single Acting Piston Mud Pump/Oilfield Slurry Drilling Mud Pump

ModelF800F1000F1300F1600/1600LMax liner dia. x stroke (mm)170x229170x254180x305180x305Rated stroke r/min150140120120Rated power hp800100013001600Gear herringbone gearRatio4.185:14.207:14.206:14.206:1Suction flange10''12''12'' Outlet flange/Pressure5″/5000psi5″/5000psi5″/5000psi Shaft dia.mm177.8196.9215.9 Key44.45x44.45mm50.8x50.8mm50.8x50.8mm50.8x50.8mmValve PotsValve-over-Valve API#6Valve-over-Valve API#6Valve-over-Valve API#6Valve-over-Valve API#6 Power end: The shell is a steel plate welded structure, and the internal stress is eliminated after welding.  power end gear The gear is involute tooth type, with stable operation, high efficiency and long service lfe. Cranksharft is hollow Integral casting. The power end lubrication method is splash lubrication. Fluid end: Suction and discharge flanges meet ASA and APl specifications. The piston rod and the pony rod are connected by a clamp, which can realize quick assembly and disassembly.Bottom of valve hole. There is a step at the top to prevent the valve seat from sinking. Piston and cylinder liner powered by a separate spray pump which cooled and lubricated for a long service life. The wearing parts can be replaceable.   Packing & DeliveryCompany ProfileShandong Xilong Machinery Equipment Co., Ltd.Is a professional supplier of various oilfield equipment in Dongying, Shandong,including API certified oil drilling and service equipment, oil production equipment, oil tubing, wellhead and downhole tools and accessories.1.The company has developed various types and complete specifications of oil drilling and production wellhead mechanized tools.2. Company export countries: Sales cover the country's major oil fields and Europe, the United States, the Middle East, Central Asia, Southeast Asia and other regions.3. To bring customers what role: shandong Xilong Mechanical machinery equipment co., LTD. In domestic oil fields and the overseas market has a perfect service network, has a complete pre-sale, sale, after-sales service system, and provide special conditions according to the customer request work of customized products, domestic products cover the fields, are exported to North America, southeast Asia, the Middle East, central Asia and north Africa and other regions.Certifications/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
