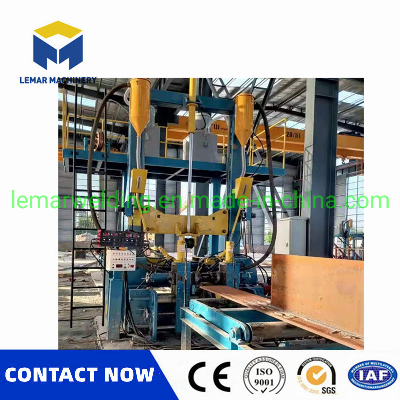

Automatic H Beam Assembly Welding Straightening Machine with Seam Tracking System

H-beam production line is used for welding production of welded H-beam.The production line includes CNC flame plasma cutting machine, Automatic web and flange assembly machine, Gantry type submerged arc welding machine, Flange straightening machine, End face milling machine, Sand shot blasting machine, etc.The cooperation of these equipment can continuously complete T-shaped and H-shaped steel beam Assembly, welding, straightening, discharging and other processes in the steel structure h beam production process.H-beam automatic assembly production line machine It includes 3 main processes of H-beam manufacturing:Assembly---welding---correction. It can produce H- and T-beams of symmetrical and asymmetrical sections.The 3 in 1 assembly welding and straightening machine can simultaneously complete the following processes: beam assembly, butt submerged arc welding of beams in vertical state, and correction of flangee plate.Specification:  NO.MODELYTJ18001Web height 200~1800 mm2Web thickness6~25 mm3Flange width200~800 mm4Flange thickness6-30 mm5H beam length4000~18000 mm9Welder typeautomatic submerged arc welding 10weld speed0-1000 mm/min12Head angle adjustment±4513Control modePLC14Automatic welding flux recycle system2sets15Flux2×100 kg16Speed modeAC frequency conversion17Submerged arc welding power sourceSingle arc single wire or double arc double wire18Straightening modeHydraulic Straightening, hot StraighteningAbout submerged arc welding wire of automatic welding machine:Fillet size(mm)Wire diameter(mm)Welding current (A)Welding voltage(V)Welding speed(mm/min)43350~37028~30880~91063450~47028~30900~960 4480~50028~30960~100083500~53030~32730~760 4670~70032~34800~830Features of the H-beam Assembly welding flange straightening 3in1 machine produced by Lemar machinery:1.Bevels are not required for webs below 18 mm2.H-beam welding can be formed at one time, and submerged arc welding can be directly penetrated3.Flange 40mm internal heat flangee straightening one time molding4.Support various flaw detection inspections5.Save floor space6.Save raw materials7.Save crane hoisting time8.Reduce labor costs9.Reduce security risksFAQ:1. Under what circumstances is it suitable to choose H steel beam 3in1 Integrated assembly welding straightening machine?1) The site of the H-beam production line is small2) H beam automatic welding line has few operators, only 1~2 people3) Factory power supply is limited4) Workers have limited operating skillsFor more questions, please contact Lemar Machinery Equipments Co.,Ltd2. Does H steel beam automatic welding line (Beam Web flange Assembly welding straightening 3in1 machine) need gas shield arc welding first?unnecessary. On the independent H beam assembly machine, the spot welding of the gas shielded welding machine needs to be performed first, and then the H beam is hoisted into the Steel beam Gantry welding machine through the crane to perform Submerged arc welding by submerged arc welder.However, on the 3in1 integrated beam machine, it is not necessary to perform gas shielded welding first, and the H beam can be burned through directly through Submerged arc welding (the web thickness below 20mm can be burned through without beveling)3. Does the submerged arc welding machine need to choose single arc single wire or double arc double wire?It needs to be based on the requirements of the customer's H beam thickness. In China, more and more H beam manufacturers choose submerged arc welding machine with double arc and double wire, which has higher efficiency and better welding effect. However, the price of double arc double wire submerged arc welding machine is very high, which is an important factor for customers to consider.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
