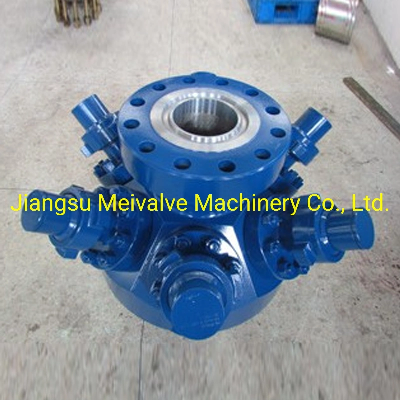

Fracturing Head Equipment with API 6A Wellhead

1.Frac Head, also known as Fracturing Head or Goat Head, is the equipment often be used on Frac Tree and Frac Stack during fracturing operation. It is designed to provide systematic and safe fluid flow while pumping high volumes at extreme pressures during frac completions. The frac head diminishes the risks normally associated with using substandard equipment. 2.Fracturing head is available in various wellhead connection sizes and two pressure ranges with 2-in, 3-in, or 4-in 1502 frac inlets and constructed with 15,000 psi or 10,000 psi working pressure flanges.We can provide customized frac head depending on customers requirements.3.Frac Head usually comes in studded and flange-end connections types. Aside from flanged style frac head, we can also produce threaded type and "Inlet" type frac head. Available with various sizes and inlets used to tie multiple frac lines into the frac tree, we can also design and produce many types of frac heads according to customers' specific requirements.Product NameFrac Head, Fracturing Head, Goat HeadMain Bore Size4-1/16", 5-1/8", 7-1/16"Outlet Size3-1/16", 4-1/16"Number of Outlets4, 6Outlet Angles45 degree or 60 degreeStandardsAPI Spec 6A, NACE MR0175Working Pressure5000PSI/5M, 10000 PSI/10M, 15000 PSI/15MMaterial ClassDD, EE, FFTemp ClassL, P, R, S, T, U, VPerformance LevelPR1, PR2Product Specification LevelPSL1, PSL2, PSL3, PSL4ApplicationFrac Tree, Frac Wellhead AssemblyPaint ColorRed or Customized  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
