Well Service Plunger Fracturing Pump

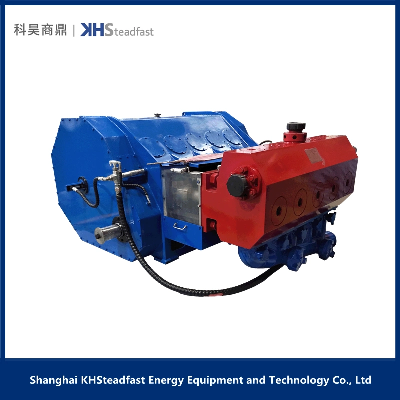

Product DescriptionKQZ2500 Pump is a reciprocating, volumetric, single acting and horizontal five-cylinder plunger pump, with a maximum input power of 1866KW (2500HP) and stroke of 203.2mm (8"). The The plunger diameter can be selected between 3 1/2" and 5 1/2".To meet users' demands for different pressure and displacement. All fluid ends of different diameter plungers match with the same Power end.The pump is used for intermittent oil well operations, such as acidification, fracturing and pressure well.Product namePlunger PumpSize4.5 InchModelKQZ2500UseOilfield PumpingBrandKHSteadfastColorRedCompared with same power plunger pump in the market, the 2500 pump has the following advantages:1, It has the characteristics of high pressure, large displacement, and it has been widely applied in fracturing performance of oil market in recent years, which is a mature product through market survey, and the first choice of the current large power fracturing products;2, Unique sealing structure design which guarantee the machine running more reliable;3, Using the herringbone gear retarding mechanism, which is stable and reliable, and can effectively ensure the pump perform in low noise and high efficiency for a long time;4, In small volume, light weight, it is more suitable for on-board equipment, while provide large displacement and high pressure, which is easy for maintenance and operation;Performance Parameters under Different Operation ConditionsPlunger Sizemm(rpm)111150200250330FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)FlowGPM(L/min)PressurePsi(MPa)88.9700140950107.6126480.8158264.6208649.095.3802121.9108694.1144670.7180956.5238542.8101.6912107.2123482.8164362.2205549.7271037.7114.3115484.7156365.4208249.1260439.2343729.7127142768.6193052.9257439.7321731.8424724.1139.7172656.7233543.8311132.8389126.3513219.9Input Power1790kW1866kW1866kW1866kW1866kWpinion shaft speed705953127115882100Quality ControlCompany Profile  Our Services & Strength Our products are also getting into brine-exploitation field and geothermal- resouces exploitaton field. With 22730 square meter research-development center areas, 9700 square meter administrative center areas, We have over 75 intermediate- highprofessionaltitle employees.CertificationsAbout usPackaging & ShippingPacking:Customized Box, Woolen, Iron Case (For Pumps & Spares and High Pressure Flowline Products)Pick Logistics, shipping agent with great service for ClientsPayment TermsWhy Choose Us   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
