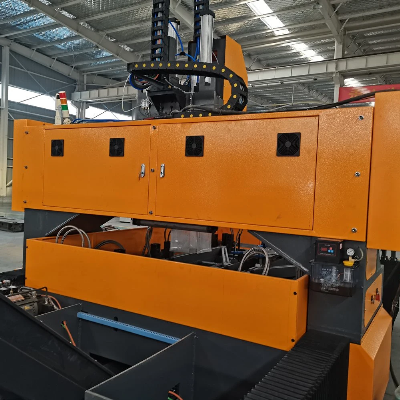

New High Speed PHD2516 CNC Plate Drilling and Milling Machine for Metal Flange Product DescriptionThe PHD series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. It can realize automatic, high precision and many kinds of mass production. Product ParametersModelPHD1616PHD2016PHD2020Processing range LxW(mm)1600x16002000x1600 2000x2000Thickness(mm)15-300Sliding feeding spindleNumber Spindle1Spindle ModelBT40/BT50Spindle speed(RMP)30-4500Feed Stroke(mm)260Tapping diameters(mm)M20Motor PowerSpindle servo motor7.5/11KWX Axis2*2.3Y Axis2.3Z axis2.3Positional accuracy(mm)0.1Repeatable Positional accuracy(mm)0.08Control modeSiemens 808D cnc system/PLC+upper computer Product Application:PHD Series machine is mainly used for drilling and milling of connection plates and anchor plates in steel structures, iron towers, bridges, machining and other industries. Drilling and milling of tube sheets, baffles and flanges in pan frying, petrochemical, pressure vessel and other industries; it can drill through holes, blind holes, stepped holes, hole end chamfering and light milling. Packaging & Shipping Certifications Our customer visit ExhibitionsCompany ProfileFAQ1.Q: What is the minimum order quantity? A: 1PCS.2.Q: What are the payment terms? A: L/C; T/T or other.3.Q: How long is the delivery time? A: 30 Days.4.Q:How long is the warranty period? A: 1 Years.5. Q:Are you factory? A: Yes. We accept to visit our factory before placing an order for our cnc machines./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
