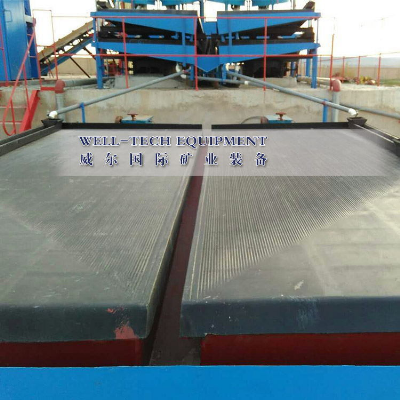

Copper Ore Table Concentrator Copper Separation Shaking Table (6-S)

Professional copper ore table concentrator copper separation shaking table Application 6-S Shaking table, which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. Construction and mechanical features Head Motion Gandong shaking tables are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum. Decks The decks are constructed of steel framework and covered 16mm fibreglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition. Support types Traditional type, groove steel support or big channel steel support are Available. Feed and Water Box A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water. Base A choice of ordinary type, groove steel support or big channel steel support is available. Technical Specification The Gandong Shaking Tables have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; The fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; The slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm. Model6-S 7.66-S 4.086-S 1.956-S 0.5Deck typeCoarse ore DeckFine sandDeckSlime DeckThree different kinds of decks are availableBeneficiation Area (m 2 )7.67.67.64.081.950.5Deck SizeLength (mm)445044504450300021001100transmission end width (mm)18551855185513201050500Concentrate end width (mm)1546154615461100850430  Maximum Feeding Size (mm)20.50.15Sand -2Slime -0.1Sand -2Slime -0.074Sand -2Slime -0.074Feeding Amount30-60 T/d10-20 T/D15-25 T/D0.4-1.5 T/h0.3-0.8 T/h0.05-0.2 T/hFeeding Density (%)25-3020-2515-2510-30Stroke (mm)16-2211-168-166-3012-289-17Frequency (r/min)45-4818-5350-57210-320250-450280-460Water consumption80-150 T/d30-60 T/d10-17 T/d0.3-1.5 T/h0.2-1 T/h0.1-0.5 T/hTransverse slope of Deck2° 30-4° 301° 30-3° 301° -2°0-10°0-8°0-10°Longitudinal slope of Deck1.40.92------------------------Groove Shape of DeckRectangularSaw-toothTriangleAvailableRectangular, Saw-tooth, TriangleMotor Power (Kw)1.11.11.11.11.10.55Transmission MechanismEccentric linkage1. We are factory (NOT Dealer) All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory). So please buy from factory 2. We will do our best to satisfy every customer's needs Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost. 3. Training & service Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away. 4. If you are new for this business, I will help you Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on 5. We will recommend a suitable type for you and send you a best quotation Our Services 1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you. 2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export 3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.   Sales: Vicky /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
