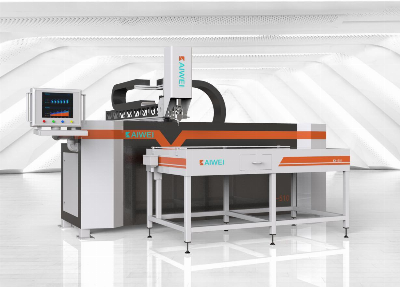

KW-510 Automatic PU Gasket Sealing Foam Dispensing Machine

KW-510 Automatic PU Gasket Sealing Foam Dispensing MachineApplicationKW-510 is widely applied for car, cabinet/box, air filter, air-conditioning puring equipment, packing, electrical element, light, new energy, etc. FeatureMaterial: PU Stroke:1000X8000X200mm(X*Y*Z) Working table:2000*1000mm(L*W) Mixing head: KW-700Finished gasket width 6-30mm.   ItemsParametersMachineModelKW-510Overall space3700X3300X2100mm (L*W*H)Working effective stroke2200X1250X200mm (X*Y*Z)Weight1700 KGSChemical materialNamePolyurethaneComponents2 Components (A+B)System/operationOperating systemWin 7/10Operating methodKeyboard/ ButtonsMixing headModelKW-700Gasket width6-30mmClean methodHigh pressure water clean+ air-blow cleaningMixing ratio(A:B)1∶1-10∶1Output1-4 g/sRepeated position precision±0.05mmAir pressure6-8 barMechanical frameType3-aix linear mechanical armSpeed0-250mm/sStorage tankTypeAir pressure tankVolumeA Tank-40L  B Tank-40LAutomatic stirring A Tank: YES   B Tank: NOGlue refillManualAir refillAutomaticWorking tableMaterialAluminum profilesSize2000X1000X900mm (L*W*H)Electric powerVoltage3X380V ( It can  be designed base on customer request)Power5.5kwAirDry compressed air≥6barWater Clean tap waterMixing and Dispensing:  Mixing head model:KW-700Dimension:410*200*135mmWeight:4.6KGColour:  SilverOutput:1-4g/sRepeated glue output precision:1% (weight test)Pressure control method: electromagnetic valve  Description:High pressure water-cleaning and air-cleaningModular light-weight structural design;High strength aluminum alloy and stainless steel structure;Multiple level glue injectingStirring bar speed is adjustable,  special design makes glue mixing very evenHigh pressure pinhole injecting valve to control water-cleaningAir-blow pinhole injecting valve to dry mixing headStirring bar directional movement to control the nozzle locking functionGraphical editing mode 1)  Auto Cad is built in the vertical computer; 2) USB port to transfer the Auto Cad drawing to the vertical computer; 3)  Gallery with standard pictures in the vertical computer;4) Wireless Hand operator panel for teach in programming;  Metering Pumps:Germany Barmag metering pumps can assure the precision of glue feeding.NameBrandModelSpeed(ml/r)QuantityTypeA feeding valveBarmag1-001-178731 setsingle inlet and outletB feeding valveBarmag1-001-17850.61 setsingle inlet and outlet  Mechanical Frame:Mechanical frame is including 3-axis steel welding mechanical arm, gear-rack, rail, servo motor, speed reducer, drag chain, steel base and others.Steel welding frame can meet the demands of high strength and stability when the machine moves in high speed.   Besides, skewed tooth gear-rackcan improve the stability and precision of 3 axes, reduce the noise. Electrical control panel:  KAWIEI ES SERIES control panel:1700*1000*400mm(H*W*D)Material :mild carbon steelColor: RAL9003  RAL2011Elements brand:Schneider  Omron  Siemens and others         Storage tank:                                                  1,Material:stainless steel2,Volume:  A-40L  B-40L 3,Automatic high-low level alarm for A4,A tank is with automatic glue-stirring and air-refilling function5,A,B tank are with  impurity filter6,A tank with automatic air refilling and mixing function      Working table:  Dimensions:2000*1000*900mm(L*W*H)Material:Aluminum profilesDesk top:Grey wear-resisting clothWater and air-cleaning  stainless boxControl button boxWork-piece fixing stainless barsRaw Material-PUPU is a product of 2-component Polyurethane. It adopts FIPFG (foamed-in-place foam gasket) technology which can foam on the workpiece directly. The finished product is a soft and elastic foamed gasket. This gasket is made from component A and component B. Component A is mainly polybasic alcohol, Component B is a hardener-isocyanate. After mixing A and B according to a certain proportion and completely foaming, the mixture will become a soft foamed sealing strip. • Mixing time: time for mixing component A and component B • Reaction time: time for the mixture to react( about15-60 seconds after mixing) • Foam time: time from reaction to finish (about 15-180 seconds) • Dry time: time for no viscosity on the suface, and no damage with touch under room temperature 25 ºC(about 2-20 minitues later) • Available time:time for the availability of gasket to be pressed or assembled (about 20 minitues-12 hours later) Shanghai Kaiwei Electric Equipment Co.,Ltd. Website :kaiwei-electric.en.made-in-china.com Add:Room B618, no.6433 yinggang east road, 8090 pioneer park, qingpu district, Shanghai, China /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
