for Net Rope Using Plastic Monofilament Extrusion Line Monofilament Extruder

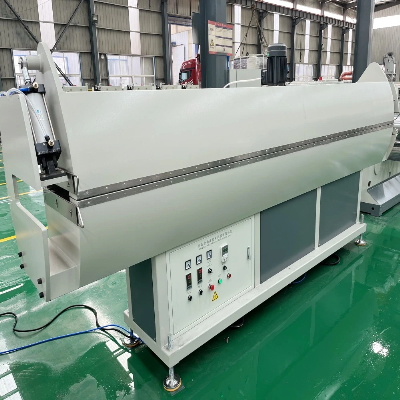

 Plastic PET PE PP Nylon Net/Rope Monofilament/Yarn/Fiber Extrusion Line    I. Brief Introduction   1. Brief Introduction of PET PP PE Nylon NET/Rope Monofilament Extrusion Line     Plastic monofilament extrusion line consists of material loader and dryer,, extruder, material filter, melt pump, mold, haul-off rollers, ovens, and winders   ----Raw material: PET bottle flakes, PET chips, plastic granules ----high tension ----Monofilament diameter: 0.1-1.0mm or as customer needs         2. Extrusion line picture         3. plastic monofilament yarn fiber picture     4. Main Technical Parameters   NOMachine ModelMachine Capacity Power Consumption (KW)1SJ7560-70kg/h1302SJ90150-200kg/h1603SJ110200-250kg/h180 4SJ120250-300kg/h210II. Machine Pictures & Details   1. Single screw extruder   ---specially designed screw and barrel for different material     ----optional material drying and loading system for different material    2. Material Filter, Melt pump, Extrusion Mould & Cooling Tank    --- candle type filter, bigger filtering area, no need change filter net shortly. ----Close--loop control system from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.----Melt pump ensures stable extrusion---304 stainless steel water cooling tank     3. Extrusion Mould       ---good quality and special treated---produce different size monofilaments---hole quantity can be changed   4. Hual-off rollers     --gear transmission  ---chromized rollers---rollers are PLC synchronized speed control           5. Water Oven     ---made by 304 stainless steel---with water drying system     6. Air Oven---forced air blowing system---inverter control---good heat-preservation    7. Winding machine I  optional: -------------bobbin winder                 --------------spindle winder      III. Company Profile    Qingdao Jinfuxin Plastic Machinery Co., Ltd is one professional plastic strap & plastic monofilament extrusion machinery facotry in QINGDAO, CHINA. It was founded in 2002, covers an area of 15000 square meters.QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. But the main products are Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line. 80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.             /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
