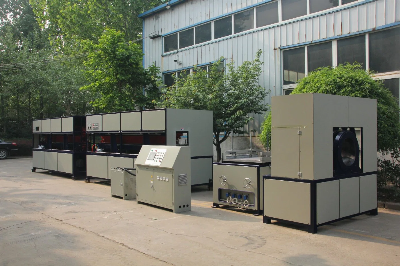

Fiberglass Pipes Pullwinding Production Machine

Technical ParameterTotal power: ≈20kW (not including die heating power) 380V/50HzDimension: 35m(L)*2m(W)*2m(H)Production Line ConfigurationDescription Technical DataQty Roving CreelsIvory paint, combined structure, easy accessibility2 Equipped with tension deviceQty/No. of layers: 90pcs/5 layers Dimension: 2000mm(L)x700mm(W)x2000mm(H)Not removable type  Resin BathDimension of bath body: 1030x720x190mm  Material of bath body:304 stainless steelDimension of bath frame: 1610x810x1500mmHeating type or not: not Roving guiderNo. of holes: 5001 Sizes of roving guider: 1000x800mmMaterial of guiding board: PEMat supportWidth of horizontal type mat support: ≤1000mm1 Diameter of vertical type mat support disc: 360mmQty: one horizontal type, two vertical type Die tableWidth of die: 700mm1No. of heating zone can be increasedLength of die: 900mmAdjustable height of die mounting board: 0-100mmManual adjustDie adjustment method: three-dimensional adjustmentPower of temperature zone: 4kW-6kW.Heating (temperature) zones: 4-6Speed display: Omron touch screenTemperature display: Omron touch screen Operation panel: touch screen + knobshydraulic pressure adjustment: pressure regulating valve Pressure display: pressure gaugeProtection cover: carbon steel spraying  Dimension: 4860x1150x2200mm PullerClamping sizes: 800x440mm1 Length of clamping board: 610mmMax. pulling force: 300kNMax. clamping force: 300kNPulling speed: 0.1-0.7m/minMax. pulling reciprocating stroke: 600mmClamping stroke: 150mmPulling cylinder: HSG Ø160X600Clamping cylinder: HSG Ø 160X150Type of oil pump motor: three phasePower of oil pump motor: 2x4kW 380V/50HzPower of circulating water pump: 1.5kW 220VDimension: 5200x1150x2000mm  Winding machineCentral height of roller disc: 1280mm±40mm1 Max. winding diameter: Ø 350mm No. of winding head: 1No. of spindles: 24Max. spindle diameter: Ø200mmRotation speed: 0-10rpmWinding space is adjustablePower: 4.4kWSynchronous control with puller on touch screenServo driving: YASKAWA CutterMax. cutting range: 800x220mm1 Rotation speed of saw blade: 1450r/minCutting motor: 3kWDust collection method: vacuum cleaner 3.5kW 220VDiameter of saw blade: Ø600/Ø50mmCutting modes: Auto/ManualCutting tracking stroke: 700mmFix length cutting method: optoelectronic switch Clamping method: front and back double clamping Dust cover equip at the entrance and exit Cutting feeding method: cylinder controlMovement way of saw blade: transverse typeCutting precision: ±3mmDimension: 2100x1800x2000mm Racking for finished productsRoller type   Dimension: 6000x700x900mm Electrical control systemPLC: Omron  Intermediate relay: OmronSpeed display: TokyTemperature controller: YATAISwitching power supply: OmronMCB: HUYUAC Contactor: HUYUSwitches and buttons: HUYUHydraulic systemEach pulling head is separate hydraulic system   Rated pressure: 16MpaVariable piston pump: HSU HONGMotor: HUALISealing elements: HalliteStacked hydraulic change valve NORTHMANPrecise speed regulating valve: YUKENPressure regulating valve: NORTHMANDetailed Photos  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
