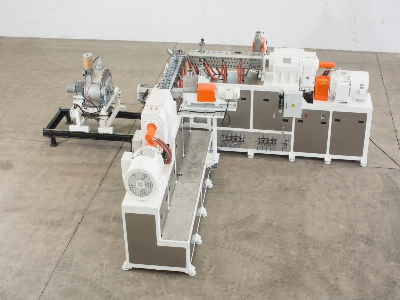

PVC XLPE Hffr Cable Insulation Material Plastic Cable Compounding Pelletizing Machine

 XLPE Peroxide cross-linked Compounds:ModelSKW-100SKW-125Screw Diamenter105125RPM600600Reference Output500-800800-1500 Polyethylenes (PE) have outstandingly good insulation properties. A temporary temperature rise, e.g. due to peak loading, can however cause a complete breakdown of PE cable insulation. The relatively low softening or melting point leads to thermo-mechanical failure or even dripping of the Insulation. Cross-linked polyethylene (PEX) is more thermosetting than thermoplastic. It can therefore be used at significantly higher operating temperatures, is mechanically stronger, more resistant to organic liquids, and often enables thinner wall thicknesses. Various cross-linking methods are used.The basic formula of peroxide cross-linked XLPE includes PE and peroxide. The peroxide liquid can be injected to co-kneader from hollow pins, which provides a free adaptation in barrel position and high outstanding mixing effect due to peroxide injected to polymer directly. The co-kneader has mild shearing to the whole process, and an easy switch-over is realized. SJW XINDA Type Cascade Three Flights Co-Kneader Compound Extruder for XLPE Peroxide cross-linked CompoundsThe XINDA SJW Three flights compouding system,each spiral is broken by 3 gaps per revolution to locate the kneading flights, 3 rows of kneading pins,which are individually inserted in the barrel per 120 degree. The reciprocating wobble-box synchronizes the shaft rotation and oscillation so that each revolution of the screw is accompanied by one full stroke forward and backwards.This ensures optimal distributive and dispersive mixing with minimal energy consumption.  Advantages of the XINDA Co-kneaderThe Co-Kneader, a mild-shear rotating and reciprocating single-screw extruder, is designed for shear and temperature sensitive compounds. The flights on the screw are interrupted and interqct with three rows of stationarv kneadina pins located in the barrel wall. The interaction between the moving flights and the stationary pins provide dispersive and distributive mixing simultaneously. Axially opened split barrel guarantees ease of cleaning. Those splined, segmented screw elements and pins can be changed easily according to different processing techniques. In addition, some pins are hollow inside, thermocouples can be inserted to get the accu- rate temperature of the materials inside the barrels, so as to liquid additives injection. Different from other extruders, the kneading process is achieved radially and axially at the same time. All in all, Co-Kneader has outstanding kneading, mixing efficiency and high degree of self-wiping. It is the most suitable for compounding purposes.Cascade two-stage co-kneader system for XLPE Peroxide cross-linked Compounds Compounding: Co-kneader and discharging extruder build up two stage compounding system.    Advantage of the compounding system:--Lower energy input, lower melt temperatures--Extremely homogeneous mixing, no shear spikes, equal treatment of polymer matrix--High degree of self-wiping and have no dead spot--Dispersive mixing without destroying delicate fllers--High volumetric loadings of fllers and additives--Efficient blending of liquid components--Broad application for compounding without changing hardware--Axially opened split barrel guarantees ease of cleaning and fast maintenance--Replacement parts, such as screws, barrel lining and pins can be changed individually   XLPE peroxide cross-linked Compounds:                                                                                                                              --For 35KVA cables                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Details Images   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
