Plastic Granulars Bulk Material Big Bag Unloader

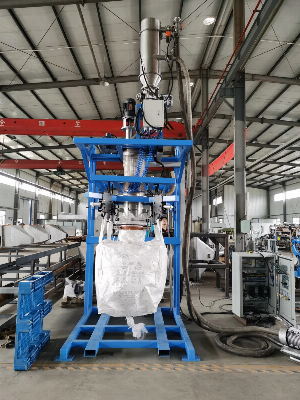

Product DescriptionThe ton bag unloading station, large bag opening system, ton bag unpacking station system, and ton bag unloading system can be connected to an electric hoist. The ton bag is lifted to the unloading port by an electric hoist, and the unloading port under the ton bag is manually opened. The aperture valve is opened, and the material inside the ton bag falls into the storage hopper by its own gravity. The unloading can be promoted by a vibrator or massager, making the operation simple and convenient.Applied in the unpacking of plastic and plastic additives, mixtures, sewage treatment clarifiers, cement and other dry powders, granular materials, powder particle mixtures, and sheet materials.  Specification of ton package1000 × 1000 × 1200Operating environment-15 °~50 °Operating pressurenormal pressureAir source pressure0.4~0.6MPaApplicable materialspowder, and particle materials with good flowability and average flowabilityMoisture content≤ 3%Main StructureCharacteristic descriptionThe pneumatic clamping mechanism is a double circular ring bag clamping structure. When the large bag is lifted above the bag clamping device, press the button on the controller, and the cylinder piston rod extends to lift the pressure plate. At this time, manually pass the mouth of the ton bag through the center hole of the pressure plate and insert it between the inner and outer rings. Press the button on the controller again to retract the cylinder piston rod, and the pressure plate is lowered to fit with the upper plane of the inner and outer rings. At this time, a closed material channel is formed between the bag mouth and the inner ring, and the bag mouth tie rope is removed, The material can enter the lower hopper, and the combined action of the pressure plate and sealing ring can effectively prevent dust leakage.Appliction IndustriesApplication fields: food, medicine, fine chemicals, additives, chemicals, plastics, dyes, building materials, etcApplicable materials: coffee, milk powder, flour, mildew inhibitor, preservative, essence and spice, monosodium glutamate, granules, glucose, industrial raw materials, PVC powder, ABS powder, etc.Customer Reference  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
