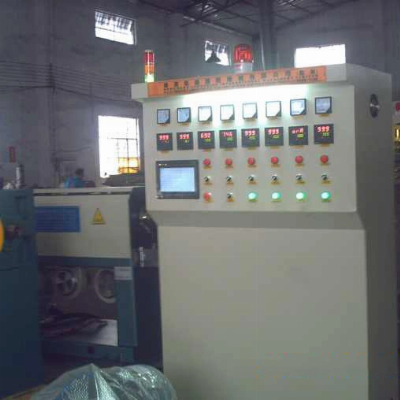

24DT copper fine wire Drawing MachineLS-24DT fine wire drawing M/C with annealer feature:1.Double inverter type can precisely control the spool wire tension to reduce the slip ratio of wire to a mininum manner.2.DC power annealer and elongation stability.3.Tension auto control systemElectric Cable Extrusion Machine production lineElectric cable, power cable, flat cable extrusion lineApplication:The machine are mainly used in manufacturing insulation of Cat5, 5e, 6 Lan Cable with polyolefin and various UL Hook-up wires with PVC. The machine consts of pay-off, drawning, main extruder, control cabinet, printer, coiling trough, accumulator, capstan, take-up etc. The single/double reel pay-off, PLC control system, laser diameter gauge, coreMachine modelLS-35 LS-50 LS-60 LS-70 LS-80 Pay-off typeactive pay-off shape headed pay-off shape headed pay-off shape headed pay-off shape headed pay-off/big bobbin wire pay-offScrew diameterΦ35mm Φ50mm Φ60mm Φ70mmΦ80mm Screw length/diameter26:1(Double thread) 25:125:1 25:1 24:1 Extrusions capacity kg/hr40 70 100 130 180Main machine motor power 7.5HP 15HP 25HP30HP 40HPwire diameter(mm) Φ0.3-3 Φ0.6-5Φ1-8 Φ2-15 Φ3-25Temperature control zone 5 districts 6 districts 6 districts 7 districts 8 districtsCooling system 3 groups 3 groups 3 groups 5 groups 5 groupsCapstan power 2.25HP 3HP4HP 4HP 5.5HPAccumulator type inclines way/level way HolizoAccumulator capacity 200 250 250 200 180Take-up line type Dual spoolsElectrical control Controlled inverter+PLC whole journey control(may choose the use)LongShine zhenglong heavy Machinery Co., Ltd. covers an area of nearly 6000 square meters adjacent to Zhongshan Xiaolan, the capital of small household appliances in the world. It is located in Zhongshan Xiaolan, a high grade hardware intelligent lock R & D and manufacturing town. The company has more than 50 invention patents more than 20 design and research team, and more than 20 years of manufacturing R & D experience. plastic extruder for LED rope lightFeature:The machine consts of Pay-off, drawning, main extruder, control cabinet, printer, coiling trough, accumulator, capstan, take-up etc. The single/double reel pay-off, PLC control system, laser diameter gauge, core.Machine modelLS-80 Pay-off typeshape headed/big bobbin wire pay-off Screw diameter Φ80mm Screw length/diameter 24:1 Extrusions capacity kg/hr 180 Main machine motor power 40HP Wire diameter(mm) Φ3-25 Temperature control zone 8 zones Cooling system 5 groups Capstan power 5.5HP Accumulator type inclines way/level way holizo Accumulator capacity (m) 180 Take-up line type Dual spools Electrical control Controlled inverter+PLC entire joumey control (may choose the use) 1.Eliminate static electricity,wire straightening device: 380V ,50HZ, 22KW.2.Main engine:Process precision power saving control system+Whole precision automatic temperature control electronic control box +linkage control system TypeVoltagefrequencypoweroutputLS-2 380V 50HZ0.75KW1000 meters/hour3.Product mould: A set of molds + Precision power saving and durability,aluminum heating,molding device for plastic products 4.Cooling:Stainless steel cooling tank +sink installation 5.Closing line:raction device for continuous extrusion process of precision stable products 6.Packaging and transportation:wooden frame protection7.Enterprise staff style: Some Senior EngineersAfter Sale Service: We will offer the Comprehensive pre-sale and after-sale service FOR FREE,Including as below:1.Cost/Production Accounting2.Site Planning 3.All requirement equipment technical support 4.on-site installation /equipment debugging/technical training services5.Guide the plant establishment and productionSpecifications1. Latest process technology 2. Stable extruding. 3. Make more profit product 4.CEAny question,welcome send an inquiry to the blank as blow!LeeZhongShan LongShine Electrical Science&Technology Co.,LtdAdd:LianFeng Yi Cun Industrial Zone,XiaoLanTown,ZhongShan,GuangDong Province,528415 P.R.China: Website: longshineguoji.en.made-in-china.com longshineguoji.en.made-in-china.com//* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
