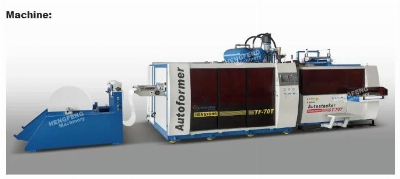

In Line Extrusion Plastic Thermoforming Machine (HFTF70T)

In Line Extrusion plastic Thermoforming Machine(HFTF70T)Inline Extruder and Thermoformer professional for making pp and ps plastic cup,which most advantage less electrical consumption!Extruder Main Technical ParameterScrew Diameter Φ120mmScrew L/D33:1Max.Output500kg/hrExtruding motor power160kwValid Die-head Width850mmMaterial Thickness RangeMin0.2mm;Max2.5mmRoller Diameter Φ450x1000mmThermoformer Main Technical Parameter 1- Max. Forming Area680×320mm2- Max. Forming Height 150mm3-Mold Clamping force350Kn4-Sheet Width Max 720mm; Min 550mm5-Sheet Thickness0.35mm-2.5mm6-Heater SpecificationCeramic Heater up and down 130kw 7-Heater Control Omron Temperature module and PLC match with control 8-Forming MethodAir pressure forming & driven by Cam 9-Operation Method Fully automatic with touch screen control10-Material Feeding Servo Motor 4.4kw 11-Max. Sheet Rolling Diameter Φ1200mm12-Air Pressure 0.7-0.85mpa13-Water Consumption 50L/min 14- Air Consumption 3000L/min 15- Max.Speed 35 Cycles/min 16- Power (Three Phase Four Wire) 380V,50Hz,3Phase 17- Main Motor Power 11kw 18- Scrap Rewinding Motor Power 0.55kw19- Machine Weight 13000kg20- Machine Dimension (L)11000×(W)3650×(H)3500mm Moulds:Sample:Shipping Packaging:Company History:Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, dEveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plasticThermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countriesAnd regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil, Chile, Bolivia, Saudi Arabia, Peru, etc. Factory Address:NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.Operation:Contact person:FAQ:1. Q: Are you a factory or trading company?A: We are a factory and giving you the quickest reply in 24 hours.2. Q: What's your company mainly in?A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .(we can produce total production line.)3. Q: How's your strength of your company?A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.4.Q: If your company has passed some certificates?A: Yes, we have passed CE, ISO.WATCH OUR VODEO IN YOUTUBE: https://youtu.be/THsFUoHqKok/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
