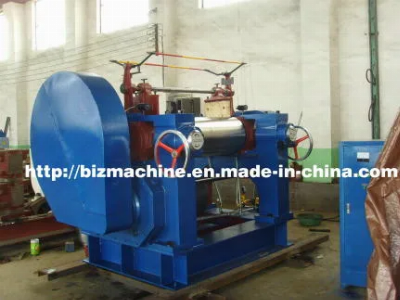

Tow-Roller Mixing Mill (XK-150-560A)

Applivations: The machine is used for plasticating, nixing and sheating of plastics and rubbers Features: 1 The rolls are made of chilled alloy cast iron with wear-resistant hard surface . The cavities of rolls are machined. 2 Overload protection device is provided to protect the main parts from damage due To overload. 3 The reverse current plugging system is provided above the rolls. In case of emergency The safety rod is pulled down and the rolls will ge stopped immediately. 4 The roll gap can be easily adjusted by handwheel. 5 The bed-plate of the machine is integral. The installation of the machine is simple. Technical Specification 1 Model: X(s)k-400 2 Working diameter of rolls: 400mm 3 Working length of rolls: 1000mm 4 Linear speed of front roll: 18.65 5 Friction rato of rolls: 1: 1.27 6 Max gap: 15mm 7 Capacity per batch: 18-35kg 8 Main motor power: 37kw 9 Overall dimensions 4250x1850x1870mm 10. Weight: 7800kg
