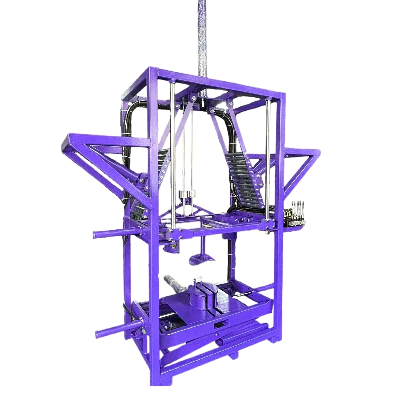

Tyre Tripling Machine Tire Loading Machine

Product Description Car Tyre Press doubling tripling machine:It is mainly use for waste tyres doubling or tripling together so that to make easy and more quantity transportation.There are hydraulic and pneumatic two types.  Product ParametersHydraulic and Pneumatic tyre tripling machine: ModelH4800P3800Drive typeHydraulicPneumatic Power  supply required220V/380V/415V/ 3-phase;For motor, Solenoid valve, travel switch,etc.100V--230V, single phase;For Solenoid valve, travel switch onlMotor power 4kw/5.5kw/7.5kw based on the power supplyNo motor power unitPressure sourceHydraulic pump Air compressorWorking pressure10Mpa0.8MPaCylinder quantityHydraulic cylinders- 9pcsAir cylinders-9pcsMax tyre diameter105cm95cmMax tyre width30cm30cmTyre tripling quantity3-5 pcs2-3pcsMain structureHost frame, hydraulic system, motor power stationHost farme, air system, control systemOperation methodHandle rod to control the hydraulic oilControl panel buttons to control the air directionMachine dimension about2400*850*3570mm2210*800*3300mmPacking size about 2500*920*2500mm2400*850*2500mmWeight:850kg730kg Detailed Photos   Main Features1, Pneumatic doubling tyre tripling machine with air supply from compressor, it can press 3-5 tyres together;2, Be easily operated by one man, and the work efficiency is high;3, Low failure rate, long time working life.Packaging & ShippingFAQ1, What types of this manchine can you supply?--- Hydraulic and pneumatic two types.2,What is the lead time normally?-- About 25 working days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?--  Normally, plywood case packing and do LCL shipment.5, How about your warranty and after-sale service?---The warranty is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
