100kg Jib Crane Electric Hoist Loading Arm Manipulator Material Handling Equipment

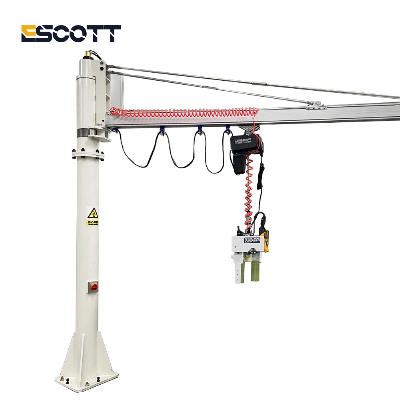

  GENERAL INTRODUCTIONJib Crane is a kind of manipulator equipment with cable. It realizes the lifting function by connecting the auxiliary lifting equipment installed on the mechanical arm with the fixture by soft cable.The equipment is used with various non-standard fixtures to realize workpiece handling, palletizing, loading and unloading. It reduces operator fatigue, maximizes productivity, and ensures worker safety. It has a wide range of applications, especially for modern production lines.CORE TECHNOLOGYJib Crane consists of three parts: column and cantilever arm, auxiliary lifting equipment and non-standard fixture.Auxiliary lifting equipment includes Electric hoist, intelligent auxiliary elevator and pneumatic balance hoist:1.Electric hoist uses a two-speed control mode; It has low cost, simple installation and operation, low maintenance cost, and is suitable for factory warehouses and other places.2.Intelligent auxiliary elevator is composed of servo drive, servo motor, reducer, etc., and is controlled by a microprocessor, which can get the working direction of the power from the operator and generate the power toward upward and downward.Within the rated range, the workpiece can be moved at any variable speed to achieve efficient handling. It has easy operation, high precision, intelligent, controllable speed and safe and reliable.3.Pneumatic balance hoist has the whole suspension function in the free stroke, which can realize the accurate positioning of the workpiece load shifting assembly and easy operation. PARTS AND STRUCTURE 1.Column 2.Cantilever arm 3.Auxiliary lifting hoist4.Handle 5.Tooling Structure  MODELS FOR REFERENCE1.Electric hoistNAMEBMS125BMS250BMS500BMS1000BMS2000Maximum load(Kg)12525050010002000Lifting speed (m/ min)8/28/28/24/14/1Motor power(Kw)0.4/0.10.4/0.10.4/0.10.75/0.21.5/0.37Lifting MediumChainPower supply220-460V2.Intelligent  auxiliary elevatorNAMEIAD-H80IAD-H200IAD-H300IAD-H600Maximum load(Kg)80200300600Handle-Lifting speed-unloaded (m/ min)4030157.5Float-Lifting-speed-unloaded (m/ min)362713.56.75Maximum stroke (m)3.53.53.51.7Lifting MediumWire ropePower supply220V±10% 50HZ3.Pneumatic balance hoist  NAMEBW005060BW015080BW020120BW032080BW035080BW050080Maximum load(Kg)226890147158227Maximum stroke(m)1.52.03.02.02.02.0Lifting mediumWire ropePower supplyAir pressureThis is just for reference, if you need other customized feature, please contact us.   INSTALLATION WAY 1. Cantilever craneThe cantilever hanging column adopts steel pipe, and the main beam adopts I-beam; It has the advantages of simple structure, flexible operation and large working space2.Folding arm crane The folding arm crane is composed of a column, a rotating arm and a lifting unit. Accurate positioning, can cover multiple working units, small footprint.3.Movable base cantilever craneIt can be moved in all directions, the operation is flexible, the positioning is accurate, and the operation range is large4.Truss crane The steel structure has light weight and low bearing capacity. It is suitable for transportation scenarios with limited space, height, or large travel requirements.  WORKING SCENARIOOUR FACTORY/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
