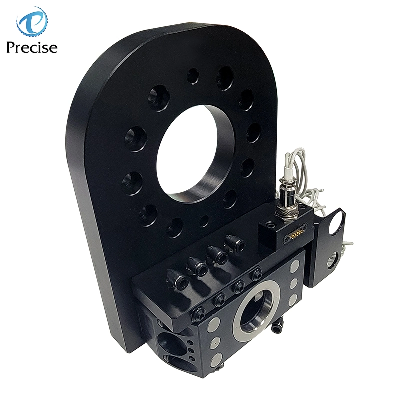

Nsr 160 Module for Robot Couplings Robot Receiver

Product Description NSR Robot Module is an ideal robot coupling for pallet handling extremely close to the machine table. Robot module comes with a flange which is able to be customized according to your robot arm so that both them fit perfectly. NSR Robot Module can be operated with 6 bar pressure. Short taper positioning effectively guarantees joint process easy go at a repeat accuracy of ± 0.01 mm. Dual stroke system for highest pull-down forces leads to reliable self-retained locking even if air pressure drop. Pull down force 5KN generally.Pull-down force is able to increase up to 15KN with turbo air pressure.Integrated electronic magnetic switch by default. Inductive monitoring of module opened or closed and of pallet presence. Product Parameters Item No.: PI-010001 (1) Pull down force: 5KN (2) Pull down force with turbo: 15KN (3) Max. Payload: 250kgs (4) Actuation pressure: 6 bar (5) Repeatability: ±0.01mm. (6) Integrted cleaning function.(7) Integrated electroinc magnet sensors for monitoring module opened and module closed.(8) I ntegrated 4 air lines for connection to workholding or equipment on pallet. (9) Signal transfer kit: 10 MA-10Pins (10) Flange material: Aluminum, Hardened.   Detailed Photos  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
