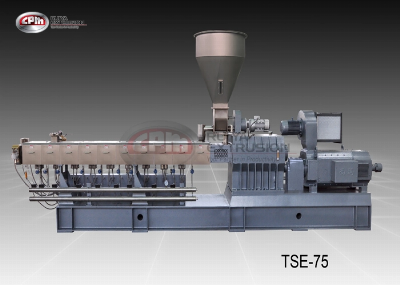

Cpm Prcocess Solution Twin Screw Extruder/Pelletizing Extruder Tse-75

Product DescriptionTSE SERIES ADVANCED FEATURES AT AN ECONOMICAL PRICETSE-75The TSE series of CPM Ruiya Extrusion is one of the most commonly used extrusion machines in china. It is the idustry standard in Asia.TECHNICAL DATAModelD(mm)Central Distance(cm)Max L/DScrew Speed(rpm)Max power(kw)Torque/shaft(Nm)TSE 7571,06,00726001601210APPLICATION-INDUSTRIES-Adhesives. -Direct extrusion. -Masterbatch. -Reactive extrusion. -PVC,XLPEandCABLE compounds MAIN PRINCIPLE AND USE THE TSE series has been in production for more than 25 years and is the benchmark for quality among entry level machines.Within this  series you can also obtain the TSE plus.Both series have highly economical prices and are driven by advanced features.THE TSE Series:THE TSE series is developed to maintain the same level of throughput,quality and reliability at a reduced cost.The TSE uses a modern building block construction consisting of base frame,motor,safety clutch,gearbox,segmented barrels,and segmented screws.The TSE typically uses electric heaters and modular cooling with water.At the most economical solution,all components are sourced from top Chinese and global suppliers.THE TSE Plus Series:The TSE Plus allows processors to obtain adcanced performance within the TSE series.The TSE Plus offers higher output,higher torque,and higher reliability than the TSE base models.The TSE Plus includes all of the features of the TSE and the following additions:- European high torque gearbox with the industry's highest safety factor,low noise,and significantly longer working life- European high performance gearbox lubrication system- European safety clutch for advanced mechanical protection- Frame with increased rigidity and strength- Barrels and shafts that are interchangeable with the TSE base models THE ADVANTAGESYOUR BENEFITDesign proven and refined over 25 years and over 2000 installationsThe benchmark for quality among entry level machinesThe industry standard in ChinaTSE Series:- 30 Years approved by customers - With UL & CE Certification - Heavy duty gear box, much Heavier than competitors - New compact design oil lubrication unit, using plate heat exchanger and adding oil temperature and pressure sensors, for better gearbox cooling - Benchmark in market Basic ParametersSpeed600rpmTorque density6-8Available sizes20-177mmTSE Plus Series:- Same Process section as TSE series machine - European imported Gear Box &Lubrication system - Safety clutch from UK Basic ParametersSpeed600rpmTorque density10Available sizes20-177mmMACHINE DESIGN ENGINEERINGFEATURES Screw geometry based on Chinese standardsIntegrated torque limiting systemClosed loop barrel cooling packageProven and reliable gearboxModular barrel configuration with individual electric heaters,modular cooling by water,and independent temperature control zonesRobust frame designVent ports for atmospheric venting Vacuum ports and vacuum systems for degassing Splined shaft Available with side feeding barrels and side feeders Available with side feeding barrels side feedersSelf-wiping segmented screwsAvailable with maximum screw speeds of 600 RPM User-friendly analog or PLC control systems Available sizes are 20mm-135mm  Company ProfileLeading supplier of process equipment and systems technology for the oilseed,animal feed,biofuel,human food and materials industries.Growth in these markets is driven by population and GDP growth which increases damands for advanced proteins,food,materials,and fuel. Founded1883 in san Francisco,CaliforniaFinancials2022 Projected Revenues:~$650MMEmployees1260(Americas585,Asia291,Europe384)MarketsOilseed,Animal Feed,Bioenergy,Human Food,Engineered Materials,and industrialFaccilities26 facilities comprising of sales,engineering,manufacturing,and customer service centers in the Americas,Europe and Asia.Our AdvantagesEquipment and workshoppackaging&serviceProject Examples4 X 133mm APEX lines generating a total of 20,000 kg per hour, 5,000 kg/h per machine - provided to largest ABS producer in the world  - very high reliability requirementsWorld's leading battery separator manufacturing purchased 8 lines from Ruiya. 23 lines delivered to the number one producer of TPU in Asia. Turn key line delivered to world class chemical plant. Modular designed and built compounding system for US customer. High level specification compounding line in Shanghai for global leader headquartered in Belgium to produce unique compounded product (included CPM, feeder supplier and Automatik). Designed for chemical plant specification including explosion proof. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
