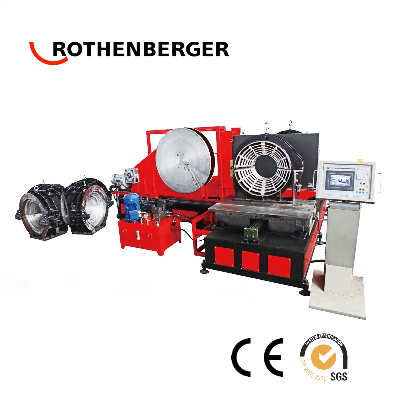

Wuxi Shengda Workshop Fitting Fusion Welding Machine (SHG630)

Wuxi Shengda Workshop Fitting Fusion Welding Machine (SHG630) Specifications Application and features1 Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.2 Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings3 Removable PTFE coated heating plate4 Electric planing tool with safety limit switch5 Low starting pressure and high reliable seal structure6 Separate two-channel timer records times in soaking and cooling phases.7 Digitally High-accurate and shockproof pressure meter indicates clearer readings.8 Linear guide ways are equipped with heating plate and planing tool9 Products comply with 98/37/EC and 73/23/EEC standardsOptional partsSpecial clamps for welding flange stubSpecial clamps for short spigot fittingSpecial clamps for welding Y shape (45deg; And 60deg; ) fitting  Model SHG630 Pipe Sizes 315, 355, 400, 450, 500, 560, 630 Application                                                                0~90° elbow, tee, cross, 45° and 60° wyes (optional parts should be used) Heating Plate Max. Temp. 270º C Temp. deviation in surface (170~250 Degree) ± 7º C Pressure adjustable ranges 0~16MPa Working Voltage 380V, 50Hz Heating Plate Power 22.23KW Hydraulic unit power 4KW Planing tool power 3  KW Total Power 29.23  KW Total Weight 4830KG Exclude optional parts CERTIFICATECompany profile:Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD  is the leader  manufacturer of butt fusion equipment in China.  We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
