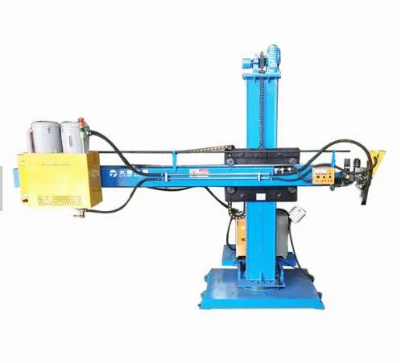

Datang Welding Automatic Welding Machine Pipe Welding Manipulator

Welding manipulator includes fixed type, fixed with rotation type and full position and lots of forms. Boom retracting adopts veriable frequency control, which adopts PLC control system. Mechanical precision is higher, positioning is correct. It also be designed and manufactured according to the customer's special requirement. Performance and Character: O According to the boom end weight loading, the welding manipulator has many types: Light duty type (LHQ), medium duty (LHZ), heavy duty (LHW), and super Heavy duty (HCJ). O Structure: Stationary, stationary and revolve, moving and revolve O Cross-section of boom and column is calculated scientifically. Drooping of boom along horizontal travel is 2mm/m. O Boom lifting device has anti-failing device, of ratchet structure, safe and reliable. O Boom end has cross-slides, which can be controlled thru manual pendant. O Control roller has eccentric shaft, which can decrease clearance between roller and rail. O Column revolve unit has motor-driven and manual drive. O Control unit includes control board and pendant, interface with positioner and turning rolls also prepared. Products formDLH-Heavy dutyDLH-Middle sizeDLH-Light dutyDLH-Small sizeModelDLH6070DLH5060DLH4050DLH3040DLH2030DLH1015Vertical elevation stroke6000 mm5000 mm4000 mm3000 mm2000 mm1000 mmBoom retracting stroke7000 mm6000 mm5000 mm4000 mm2000 mm1000 mmFrame rotation angle±180°±360°Frame rotation speed0.3 rpm0.3ManualBoom elevation speed1 m/min0.3 m/minBoom feeding speed0.12-1.2 m/minManualTrolley feeding speed3 m/minManualTrolley rail span2000 mm1800 mm1000 mm800 mm   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
