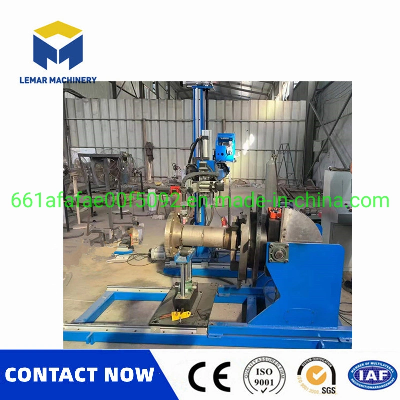

TIG Oil Tank Flange Welding Manipulator with Rotary Welding Turntable

  The arc welding is the welding method of protecting the gas as a protective gas.Features of TIG arc welding:The quality of the TIG welding is high.Because the sorch is an inert gas, it does not have a chemical reaction with the metal, the alloy elements will not be burned, and the ingredients are not melted to the metal. Therefore, the protection is better and can get more pure and high -quality welded seamsThe welding deformation stress is small. Due to the compression and cooling effect of the arc, the stress and deformation are small during welding, and it is especially made of thin welding and pipe bottom welding.Welding range is wide and can be welded almost all metal materials(stainless steel,carbon,aluminum)which is particularly suitable for welding metal and alloys with lively chemical components.  Column and boom welding manipulator Specification: MODELHJ2020HJ3040HJ3550HJ4050HJ5060HJ8060Lifting stroke2000mm3000mm3500mm4000mm5000mm8000mmTelescopic stroke2000mm4000mm5000mm5000mm6000mm6000mmCylinder diameter500-2000mm700-3000mm700-3500mm1000mm-4000mm1000mm-5000mm1000mm-8000mmColumn rotation angle180°180°180°180°180°180°Cross arm lifting speed0.3m/min1m/min1m/min1m/min1m/min0.9m/minCross arm telescopic speed1.5m/min1.5m/min1.5m/min1.5m/min1.5m/min1.5m/minCenter distance of trolley guide rail900mm1500mm1780mm1780mm1780mm2308mm   Welding positioner specification:ModelLoadingRotate speedTilt speedTilt angleWorktable diameterRotary motorTilt motorSpeed modeBWJ-01100KG0.3-3rpmManual0-90°400mm0.18/AC Frequency stepless speedBWJ-033000.2-2Manua0-90°6000.18/BWJ-066000.1-10.40-90°10000.750.75BWJ-1010000.1-10.350-90°12001.11.1BWJ-2020000.05-0.50.250.12012501.11.5BWJ-3030000.05-0.50.250-13514001.12.2BWJ-5050000.05-0.50.250-13515001.53BWJ-8080000.02-0.20.250-135160033BWJ-100100000.02-0.20.250-135200035.5BWJ-200200000.02-0.20.2-45-9025005.511  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
